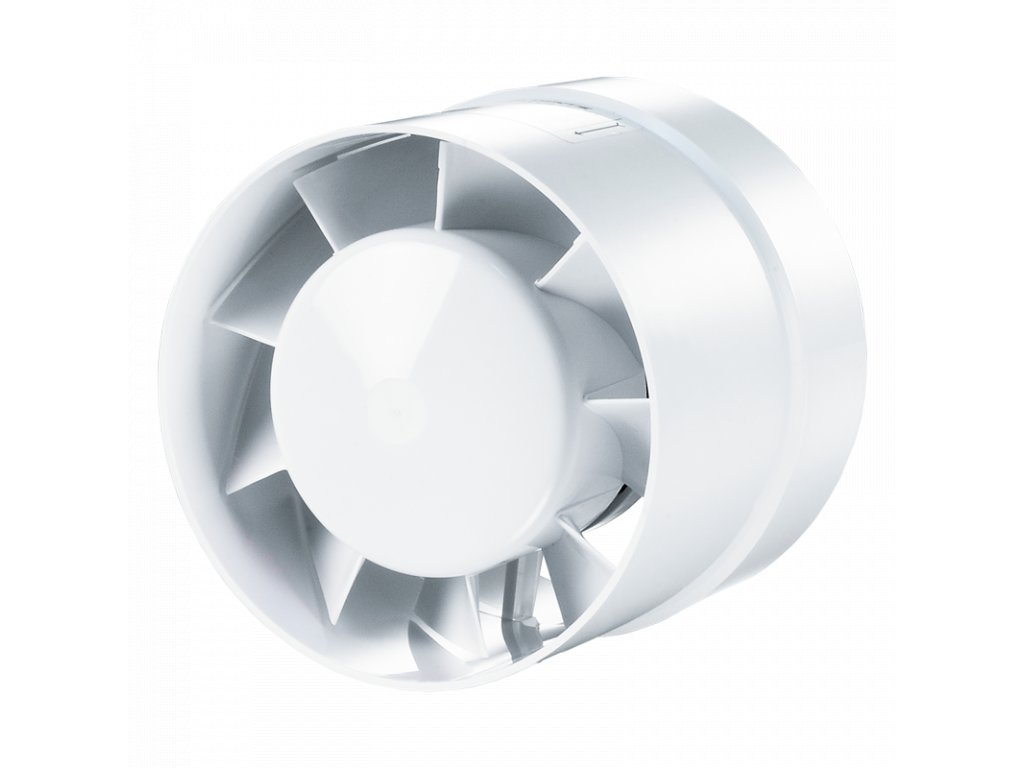

VENTS VKO 125 - 185m3/h

Product detailed description

The fan housing is made of durable ABS plastic, as are the axial blades. Due to its technical parameters and output of 185 m3 / h, this narrowed fan is suitable for use for shorter ventilation ducts with low pressure loss, or for extraction directly through the wall.

The small duct axial fan VKO 125 is compatible with all types of air ducts with a diameter of 125 mm. The fan can be used for both air supply and exhaust. The absence of a ball bearing only allows horizontal connection. Before installation, pay attention to the enclosed Czech instructions.

Axial duct fan specifications VKO 125:

consumption (power consumption) 16W
voltage 220-240V
output 185m3 / h
2400 rpm
static pressure 57 Pa
sound pressure level 38 dB (A)
weight 0.48kg
maximum operating temperature 40 degrees
recommended maximum pipe length 8m
overheat protection
IP X4 protection
