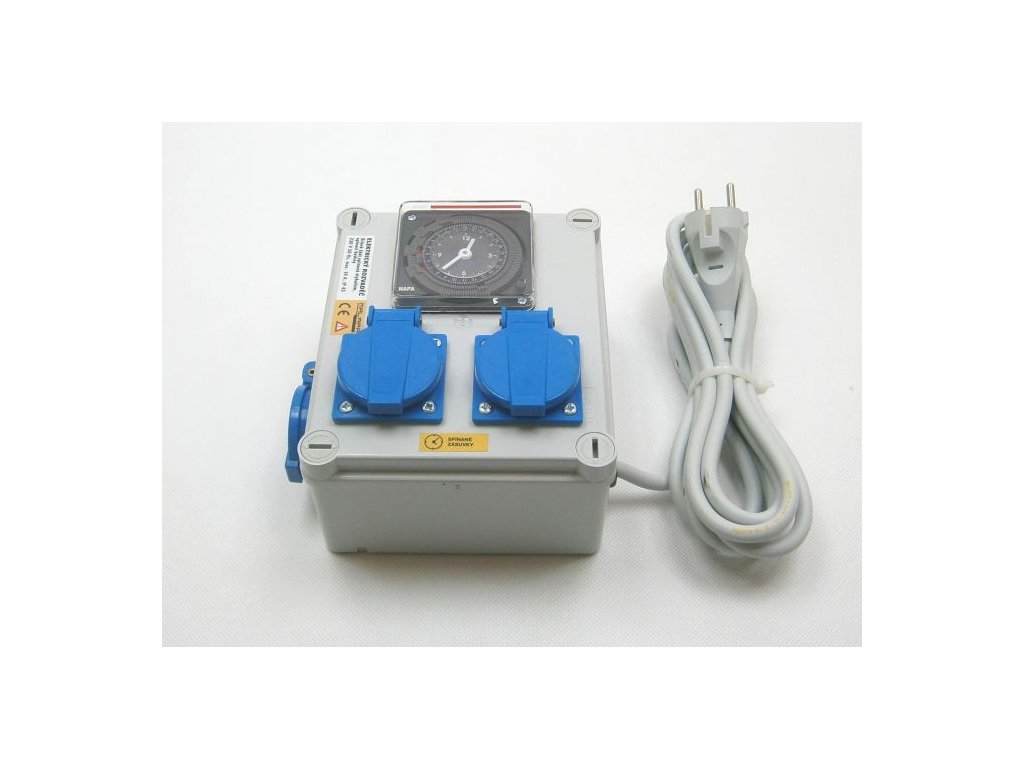

Malapa switchboard 2x 600W (2+1) 230V KL00

Product detailed description

Powers and switches inductive and resistive loads.
It can be used, for example, in switching lighting or re-lighting the greenhouse, starting pumps, motors for WWTPs, advertising banners, heating or cooling and many other periodic activities.
Switching on and off of sockets on this device is controlled by a noiseless high-power relay. The relay is silent when switching.
Switching contacts composed of precious metal alloys make it possible to switch inductive loads such as high-pressure discharge lamps.
The timer controls all switched sockets of this switchboard, you can connect a maximum load of 1x 600W to each socket.
To supply other devices, the switchboard has an integrated one unswitched socket, which is under constant voltage.
The switchboard has an integrated thermal protection of the contactor (switches off all switched sockets).
The timer with a built-in backup power supply guarantees operation even in the event of a power failure for up to 200 hours.
The timer is programmed by sliding it out and to switch it off by inserting the pins around the circumference of the dial.
You can also switch the switchboard manually. The timer is immune to electromagnetic waves or induction fields.
You can hang the device on the wall using the handle. Long-term and flawless operation even under extreme conditions, over design.

Division of sockets:
2x switched socket controlled by a timer for lighting (each socket max. 1x 600W)
1x unswitched socket, under constant voltage

Technical data of KL00 switchboard:
Power supply - 230V AC 50Hz
Maximum load - resistive 3600W (16A)
2x switched socket - a total of 2x 600W inductive loads (each socket max. 1x 600W)
1x unswitched socket under constant voltage
Operation - manual / automatic
Adjustable time - minimum 20 minutes, maximum 24 hours
Switching cycle - 12 hours
Programs - up to 72/24 hours
Accuracy + -1 second / 24 hours
Clock backup - battery up to 200 hours
Protection - thermal
Power cord with plug - 3 meters
Mounting - wall (handle)
Total weight - 1250 grams
Diameters - length 165, width 140, height 95mm
Working temperature -20 ° to 70 ° C
Working humidity - 0% to 90% RH (non-condensing)
Storage temperature - 0 ° to 45 ° C
Protection - IP43
Box - ABS
RoHS certificate
