Lumatek Zeus 1000W PRO EVO 3.1qmol/j
Code: LUMLED027Product detailed description
At LUMATEK, we are dedicated to advancing towards the future. Therefore, with continuous innovations in diode technology and careful consideration of feedback from growers, we have evolved from the previous version to introduce you the new ZEUS 1000W PRO EVO 3.1 fixture model.
Stepping up the game on high quality LED horticultural lighting, meet the brand-new ZEUS 1000W PRO EVO 3.1, with a unique frame that gives you a unique 2 x 1.5 m coverage on the LED horticultural industry due to its high efficacy and its rectangular shape.
With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. LUMATEK full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring an even light distribution.

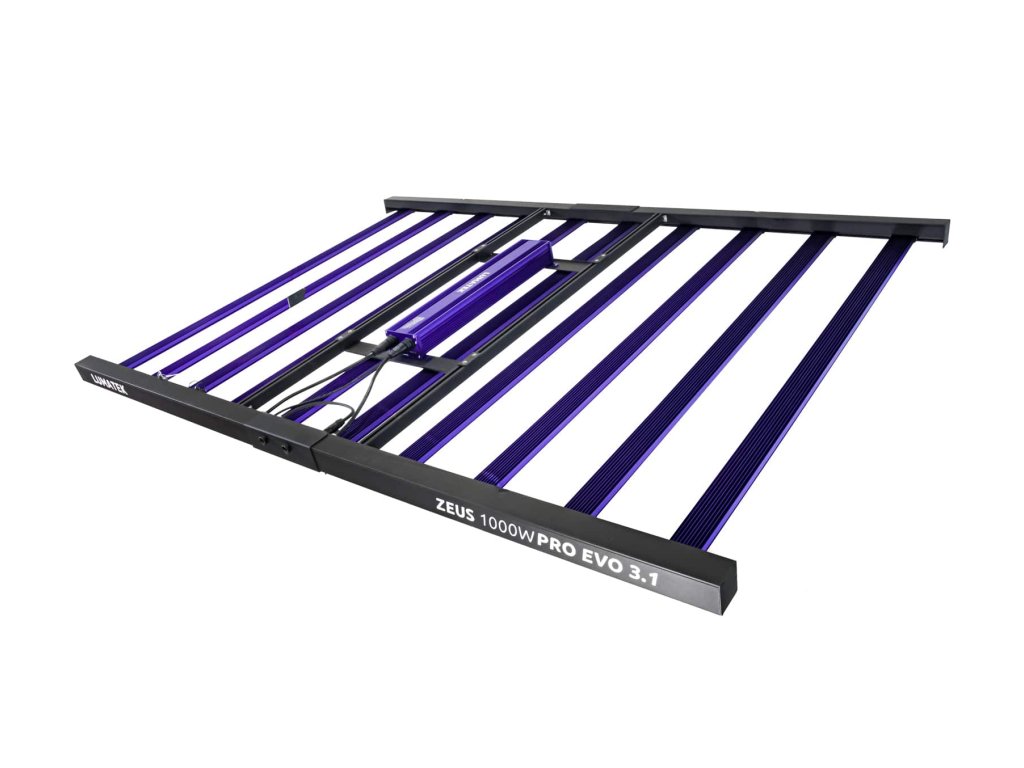

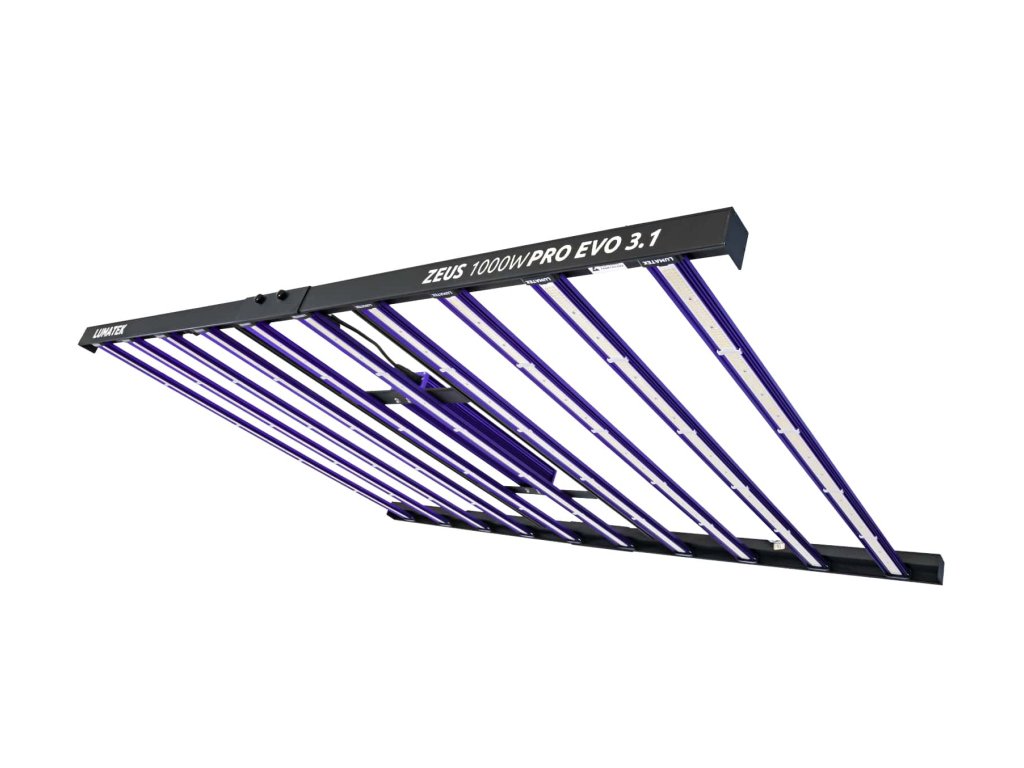

Providing the largest rectangular coverage area from the single biggest linear bar array fixture on the market, the ZEUS 1000W PRO EVO 3.1 is designed to create the best full-spectrum light distribution for large scale grows. The higher specification the new LUMATEK ZEUS 1000W PRO EVO 3.1 LED is a linear multi-light bar fixture with producing extremely high levels of PPF of 3125 μmol/s and an efficacy of 3.1 μmol/J.
This fixture has a large rectangular frame with an ingenious array that creates a uniform spread of light at short distance to the crop enabling single source grow lighting for multi-layer cultivation systems, single benches in low ceiling rooms and grow tents.
The new line of ZEUS is built using high quality LUMATEK drivers and latest generation top bin LEDs from Samsung and Osram, generating a full-spectrum light source ideal for veg and flowering cycles. The clear glue protection cover technology on the LED bars, resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes, extra corrosion resistance and high waterproof of IP65. For basic maintenance, simply clean the bars with wet cotton.
For different cultivars, propagation and vegetative growth periods the Zeus may be dimmed without losing efficiency. The high efficiency and low powered LED configuration with 10 interchangeable magnetic click LED bars reduces the temperature of the LEDs increasing the output and improving light maintenance.
As usual, this fixture can also be externally controlled with a LUMATEK Control Panel Plus 2.0 featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 units of LUMATEK ZEUS 1000W PRO 3.1 fixtures per controller.
Never stop innovating never stop growing!
LUMATEK. Helping growers grow.
FEATURES
- Very high efficacy of 3.1 µmol/J
- Very high PPF output for high intensity 3125 µmol/s
- Unique and improved frame designed for wider rectangular coverage
- Outstanding light spread and distribution in 2.0 x 1.5 m grow area
- High quality Lumatek LED drivers
- Clear Glue protection cover technology on LED bars
- Top bin LEDs
- Balanced full spectrum
- External control with Lumatek Control Panel Plus 2.0
- Replaceable 100W Pro 3.1 magnet light bars
- Fully Dimmable
- User friendly Plug & Play Assembling
- 5 Year Warranty
ITEMS INCLUDED

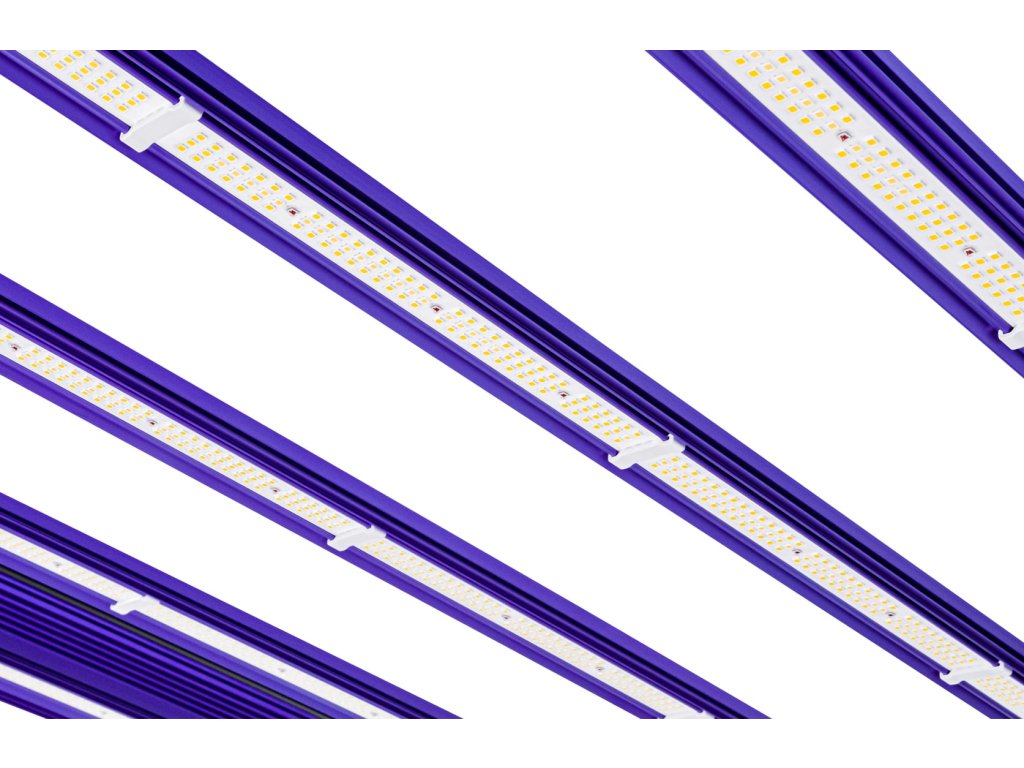

- 10 x Lumatek 100W Pro 3.1 Full-Spectrum Magnet Light Bars
- 1 x LED Fixture Structure

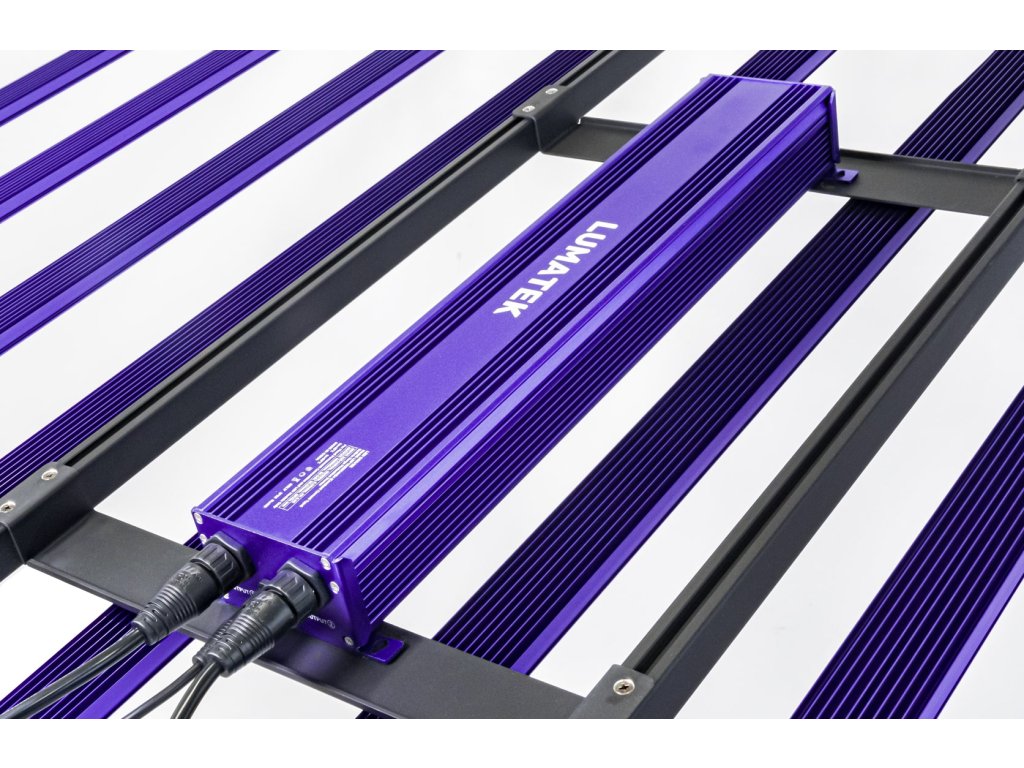

- 1 x Lumatek 1000W PRO 3.1 Driver with connecting cables
- 1 x 0-10V Light Dimmer + Velcro
- 2 x Metal Cable Hangers
- 1 x Manual
KEY SPECIFICATIONS
PRODUCT CODE: LUMLED027
EFFICACY: up to 3.1 µmol/J
PPF: 3125 µmol/s
INPUT VOLTAGE: 220-240V, 50-60Hz
INPUT POWER at 100%: 1025W (±5%) @ 230 V AC
FOOTPRINT: 2.0 x 1.5m
WATERPROOF: IP65
LIFETIME: 60 000 hrs
LIGHT DISTRIBUTION: 120°
LIGHT SOURCE: SAMSUNG LM301H EVO | OSRAM 4.24
THERMAL MANAGEMENT: Passive Cooling
DIMMABLE: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
EXTERNAL CONTROL: With Lumatek Digital Panel Plus 2.0 or Universal Controller 0-10V
WEIGHT: 18 Kg
DIMENSIONS: 1700 x 1200 x 84 mm
SPECTRUM: Full Spectrum F
Warranty: 5 Years
