Lumatek Aurora CMH 315W 4200K (All-in-one)

Product detailed description

Aurora 315W CMH (All-In-One)

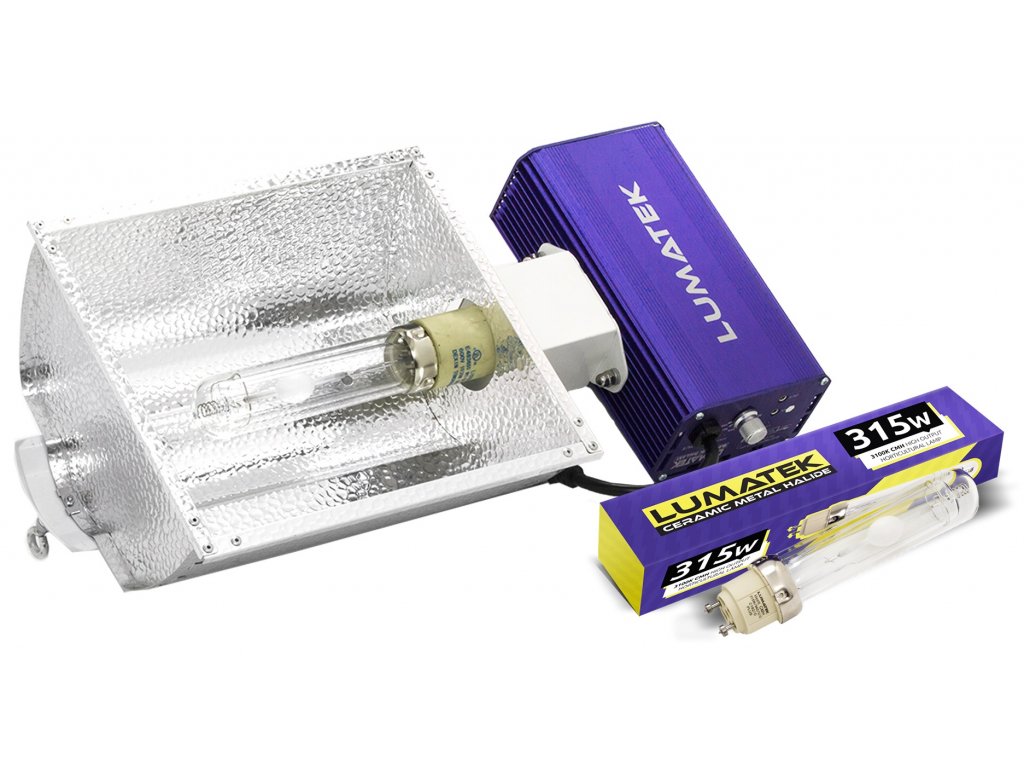

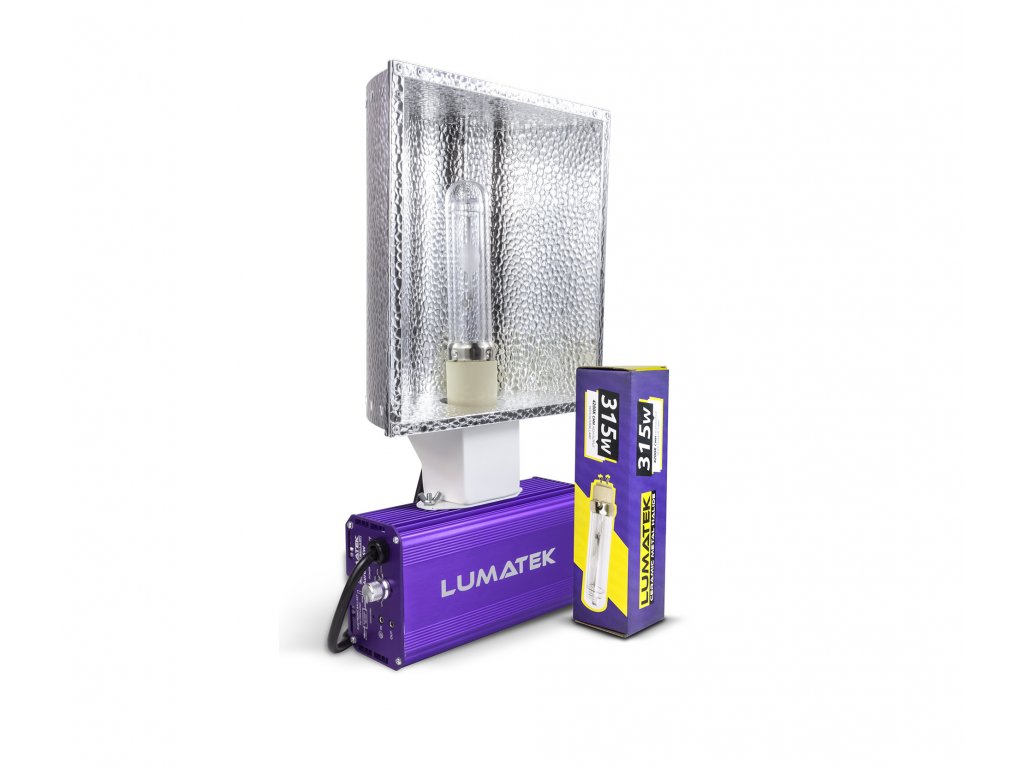

The Aurora is a state of the art 315W Ceramic Metal Halide (CMH/CDM/LEC) grow light fixture. This is an integrated all-in-one fixture combining a Lumatek controllable electronic ballast, compact hammertone reflector and 315W CMH lamp.

The e-ballast has an option to be remotely controlled with a Lumatek digital control panel (sold separately) and is dimmable. When used with the controller the Aurora can be programmed with on/off times, simulated sunrise/sunset with a timed fade to and from full brightness and automatic dimming if grow room temperature parameters are exceeded.

The Aurora’s reliable 315W CMH digital ballast has been successfully used in cultivation facilities around the word and uses square wave technology to efficiently fire and operate 315W Ceramic Metal Halide (also known as CMH/CDM/LEC) lamps.

For safety this ballast uses full circuit protection including open/short circuit, over temperature, over/low voltage, end of lamp life/rectification and EMI suppression. Ballast has an LED indicator and is dimmable for optimum control.

The Aurora”s 315W CMH pulse-start lamp has been engineered for use with Lumatek 315W CMH electronic ballast and is produced using high-grade ceramic arc tube technology and specific horticultural gas blend that creates optimal spectral output for healthy plant growth.

CMH technology creates high energy PAR/PPF levels with low heat at full spectrum which is closer to sunlight and produces healthier plant growth and larger yield. With a CRI (Colour Rendering Index) of >90%, CMH is perfect for growing high quality produce and essential oil extraction. The Aurora is supplied with a Lumatek (4200K Daylight) Ceramic Metal Halide lamp which is also available in 3100K Agro spectrum format (LUMCK001).

The PCA ceramic arc tube permits the lamp to operate at higher internal temperatures increasing colour rendering, output and efficiency. PCA resists interaction with the chemicals inside the tube which stabilizes the chemical mix over the life of the lamp, thereby improving colour consistency and PAR/PPF level maintenance. Pulse-start technology enables faster start up & restrike time, longer lamp life and increased lumen maintenance.

Specifications:

Electronic Dimmable Ballast for 315W CMH lamps
Voltage: 240V 50/60Hz
Input Current Max (A): 1.60A
Input power: 334W
Output power: 315W
Power factor: >0.97
Efficiency: 92%
Voltage range: 185 to 275V
THD: <10%
CF: <1.6
Environment temperature for full load operation: 40℃
Enclosure temperature rise (Δt): 30℃
Ballast IP rated: IP20
Humidity: 90%
Operating frequency: low frequency square wave
No audible noise, no flicker
Full circuit protection; open/short circuit, over temperature, over/low voltage, end of lamp life/rectification
EMI suppression certified

Lumatek 315W CMH (4200K) Grow Lamp
Power Voltage: 240V/50Hz
Lamp Power (W): 315
Lamp Current (A): 3.15
Rated Life (H): 14000
CCT(K): 4200K
Initial Lumens (lm): 38000
Luminous Efficiency (lm/W): 121
PAR (micromols/sec): 615
Bulb: T38
Base: PGZX18

4200K
