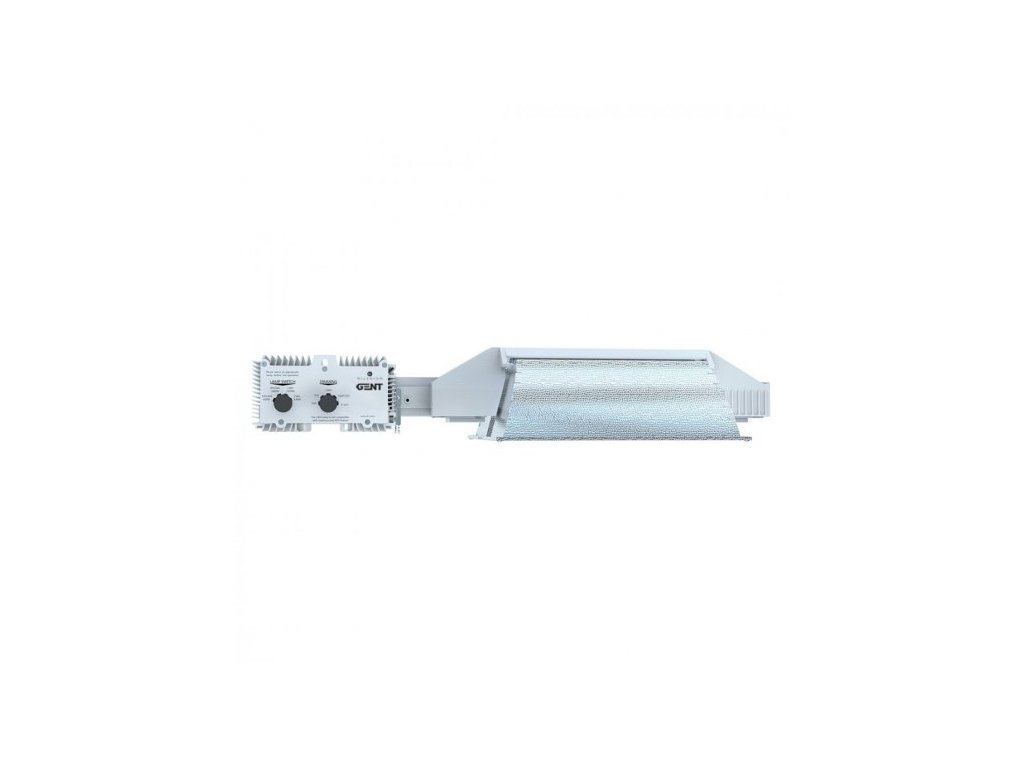

GENT Milenium CMH 630W DE Complete Fixture

Product detailed description

The complete lamp uses modern Ceramic Metal Halide technology. The Complete Fixture GENT Milenium CMH 630W includes, in addition to the electronic hybrid ballast, also a special closed reflector and a double ended lamp from AUVL.

Advantages complete Fixture GENT CMH 630W

• Complete Fixture is suitable for growboxes 120x120 cm.

• Unlike HPS lamps, it emits less heat and has lower consumption.

• The very low profile (12.3 cm) allows you to use the growing space to the maximum.

• The unique shade allows you to replace 1x Double Ended 630W with 2x Single Ended 315W

High frequency hybrid ballast

The silent digital ballast is designed for lighting plants with Double Ended 600W / 1000W HPS or MH lamps, as well as 630W / 1000W CMH lamps of any brand. One rotary knob selects the type of lighting, the other controls the power:

• DE HPS lamps at levels 50-75-100-110%
• DE CMH lamps at levels 75-100%

The GENT Milenium safe electronic ballast has protection against overheating, short circuit, overvoltage / undervoltage or circuit interruption. The ballast can be hung or mounted on a horizontal plate.

Automatic light output control

• Plug & Play ballast can be connected to Nanolux Controller.
• It allows you to automatically control up to two circuits of 60 luminaires at once.
• Using a 0-10V regulator operating in a 24-hour cycle, the dimming / dawn of the lighting can also be controlled.

Square double-focus reflector for DE and SE lamps

The complete lamp includes a closed shade with a double focal source and even light reflection. The reflector is optimized for variable use of CMH technology:

• naturally with one 630W Double Ended CMH lamp (arm with socket is part of the product)
• 1x 630W DE can be replaced by 2x 315W CMH lamps (single ended)
• for this, a special arm with two PGZX18 sockets must be purchased

Complete fixture GENT Milenium including CMH lamp

We supply the Complete Fixture CMH GENT, including the AUVL CMH lamp. The lamp includes a special arm with a DE socket for HPS / CMH lighting. If you want to use 2x 315W CMH lamps instead of 1x 630W CMH lamps, you need to buy an arm with two PGZX18 sockets.

Technical specifications:

• Max. power consumption: 1200W
• Power regulation: 0-50-75-100-110%
• Voltage: 200-300V
• Input frequency: 50/60 Hz
• Output frequency: 100-200 kHz
• Current: 3.84 - 5.12 A
• THD: ≤10%
• Photon flux (PPF) XXX: yyyy μmol / s
• Operating temperature: 0-35 ° C
• Operating humidity: <90% RH
• Weight complete fixture: 7 kg
• Overall dimensions complete fixture: 681.4x301.3x123 mm
