Gavita Pro 630e SE CMH - 630W - 4200K

Product detailed description

The Gavita Pro 630e is available with the Philips 315W 3100° Kelvin lamps (for flowering) or 4200° Kelvin lamps (for vegetative or supplemental use). The Repeater Bus interface enables external control with the Gavita Master controllers.

Suitable for Gavita Master Controllers

Our CMH ballasts ballasts can be remote controlled by our Gavita Master Controllers. CMH lamps can not be dimmed without deterioration of the light maintenance over time, and restart problems. However, the CMH fixtures are equipped with a Repeater Bus connection so they can be integrated in a HPS solution and use the Master controller timing control and safety features.

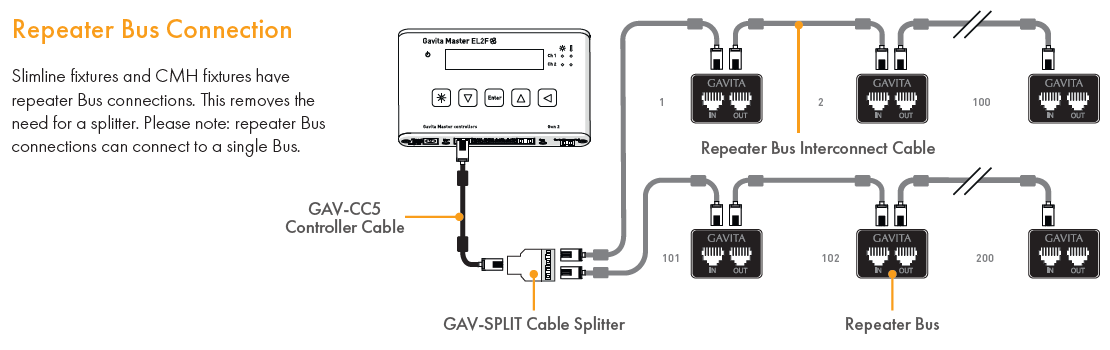

Repeater bus interface

Developed specifically for fixed installation with brackets on Unistrut (C profile) systems, the Repeater Bus cabling system allows you to daisy-chain the fixtures in your installation. A Repeater Bus interconnect cable is included with every fixture. You can connect 5 strings of 100 fixtures per Master controller port. This enables you to control up to 1000 fixtures on one EL2 controller.

The Pro 630e CMH contains two 315W CMH lamps. We use an intelligent double ballast concept, enabling to switch off one lamp in the fixture. To make sure that both lamps have equal burning hours and to balance light on the crop, we alternate which lamp is switched off every time an autodim event occurs or when you dim down to a low level.

The fixture is equipped with the M 132 SE CMH630 reflector (medium, 132 degrees beam angle, for double CDM 315 fixtures). The medium reflector is designed for CMH only installations and will give you over 90% uniformity on your crop with an optimal horizontal penetration of the crop.

Contact your local Gavita representative or our support page for more information on recommended use and positioning of our CMH fixtures in stand alone and supplemental applications.

Specifications

Weight: 5.4kg
Dimensions: 56.6x23.7x26.8 cm
Housing temperature: <70 ° Celsius
Ambient temperature: 0 ~ 35 ° Celsius
Input voltage: +/- 10% AC 240 V AC
Input current: 100% 1.4 A
Max current: 6.4 A
Power consumption: 100% 330/660 W
Power factor> 0.98
Relative humidity: <70% (non-condensing)
Harmonic distortion: <10%
Frequency: 50 - 60 Hz
Certification: CE & CSA us
Power setting: ON / OFF (non-adjustable)
Connectivity: GAVITA controller EL1, EL2
