Gavita Pro 315e SE CMH - 315W - 4200K
Code: GAV-P315BRelated products
Product detailed description
The Gavita Pro 315e is available with the Philips 315W 3100° Kelvin lamps (for flowering) or 4200° Kelvin lamps (for vegetative or supplemental use). It is a compact fixture with a new type of reflector mounting system: Instead of a bracket which holds the reflector on both sides, the reflector is now clipped on the ballast housing itself. This reduces size and weight, enables easy replacement and provides optimal positioning and stability of the small reflector.
Suitable for Gavita Master Controllers
Our CMH ballasts ballasts can be remote controlled by our Gavita Master Controllers. CMH lamps can not be dimmed without deterioration of the light maintenance over time, and restart problems. However, the Repeater Bus interface enables timing control and safety features with the Gavita Master controller. With this you can also integrate the fixture as a supplement light to a HPS layout.
Ideal for fixed installation

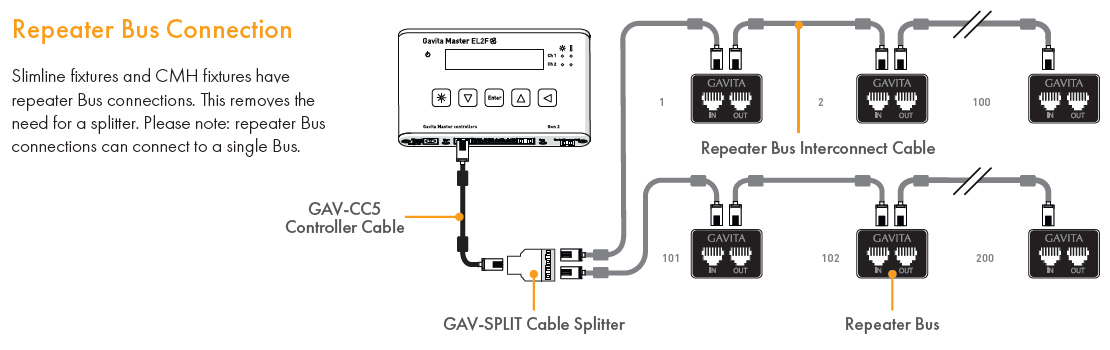

Ideal for fixed installation with brackets on Unistrut (C profile) systems, the Repeater Bus cabling system allows you to daisy-chain the fixtures in your installation. A Repeater Bus interconnect cable is included with every fixture. You can connect 5 strings of 100 fixtures per Master controller port. This enables you to control up to 1000 fixtures on one EL2 controller.
Complete fixture
The integration of ballast and reflector results in a compact fixture. No external lamp wires result in low EMI, which makes the fixture compliant with FCC regulations. All CMH fixtures are FCC tested and compliant.
Specifications
Weight: 3.3kg
Dimensions: 37.6x23.7x25.3 cm
Housing temperature: <70 ° Celsius
Ambient temperature: 0 ~ 35 ° Celsius
Input voltage: +/- 10% AC 240 V AC
Input current: 100% 1.4 A
Max current: 3.2 A
Power consumption: 100% 330 W
Power factor> 0.98
Relative humidity: <70% (non-condensing)
Harmonic distortion: <10%
Frequency: 50 - 60 Hz
Certification: CE & CSA us
Power setting: ON / OFF (non-adjustable)
Connectivity: GAVITA controller EL1, EL2
