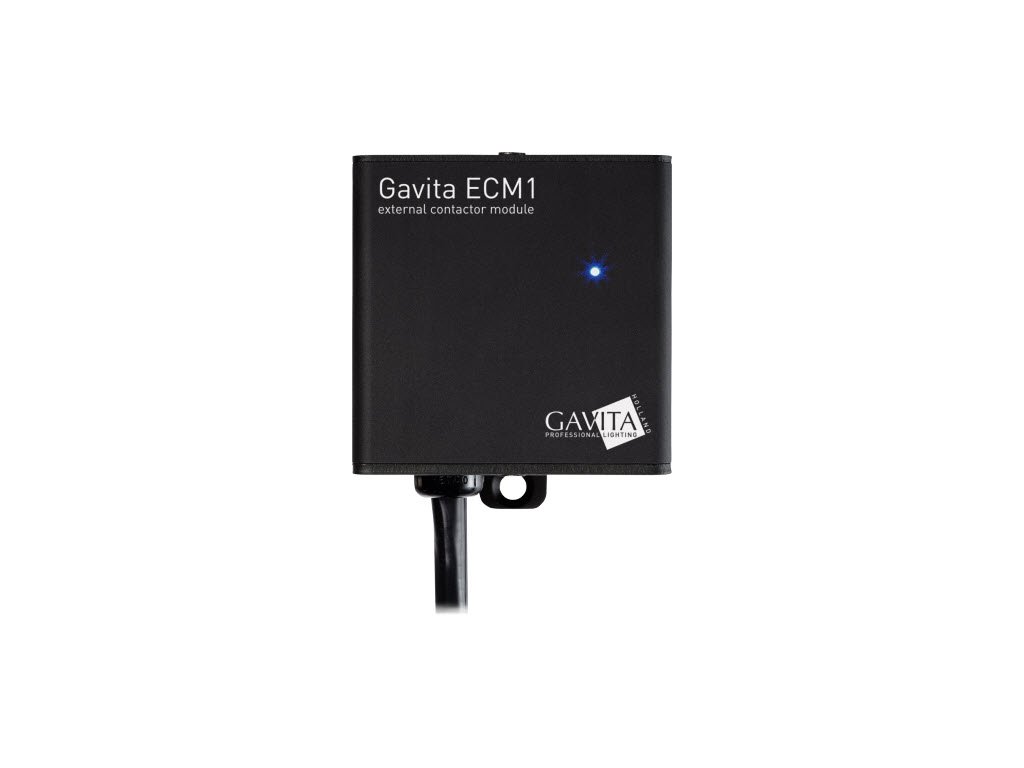

Gavita ECM1 - Control module

Product detailed description

As the EL2F works on a low voltage output, it’s not capable of switching auxiliary equipment. But with the External Contactor Module, the EL2F controller is used to switch on or off auxiliary equipment such as heaters, dehumidifiers and CO2 equipment to match lights on and lights off cycles.

The Gavita Master controller EL2 has two outputs for optional External Contactor Modules (ECMs). These industry grade contactor units can switch a load up to 15 amps of accessories during either lights on or lights off period. As the ECMs are steered by a low voltage signal you can even locate them close to the accessories themselves, enabling easy installation and optimal flexibility. The come with localized male and female plugs so that installing auxiliary equipment is just a matter of plug and play.

Features and benefits
• Up to two modules can be connected.
• One switches the device on with the lights on, the other during the dark.
• Monitors the first channel of the EL2 control unit
• Disconnects the device in case of overheating or loss of mains voltage.
• Low voltage signaling.
• Switches current up to 16A AC1, power up to 1.5 kW AC3
• Meets certification.

Examples of equipment that can be switched on together with lights:
• Irrigation system
• CO2 sources
• Ventilation
• Additional and circulating ventilation.

Examples of equipment that can be switched on when the lights are off:
• Heating
• Dehumidifier
• External night phase indication

Specifications:
• EU variant:
• Maximum controlled voltage: 240 V AC
• Maximum allowable current AC1 (non-inductive load): 16A
• Maximum permissible power AC3 (inductive load): 1.5 kW
• Switch type: DPST (two-wire switch with common control)
• Connectors: Mains socket and plug (depending on regional variant) on a 40 cm cable
• Control signal: Gavita Master EL2 low voltage signal
• Power indication: blue LED
