Dimlux Xplore Series LED 730W - 3.0 qmol/J
Product detailed description
HIGH QUALITY BUDGET FRIENDLY
THE NEW XPLORE SERIES 730W LED 3.0

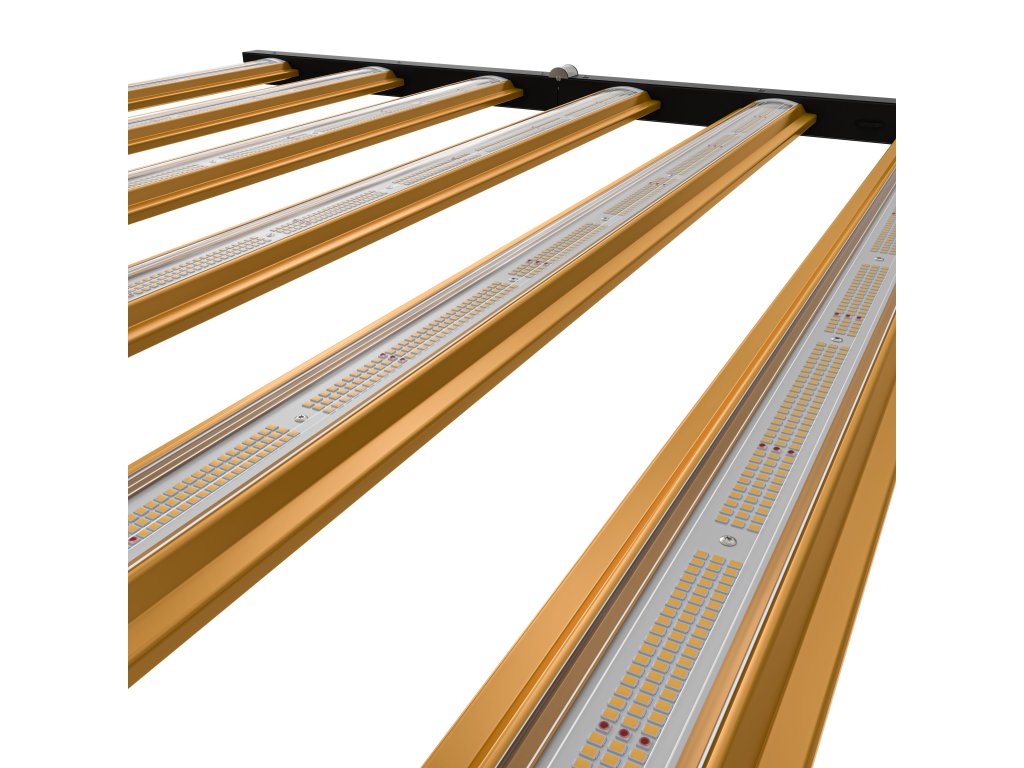

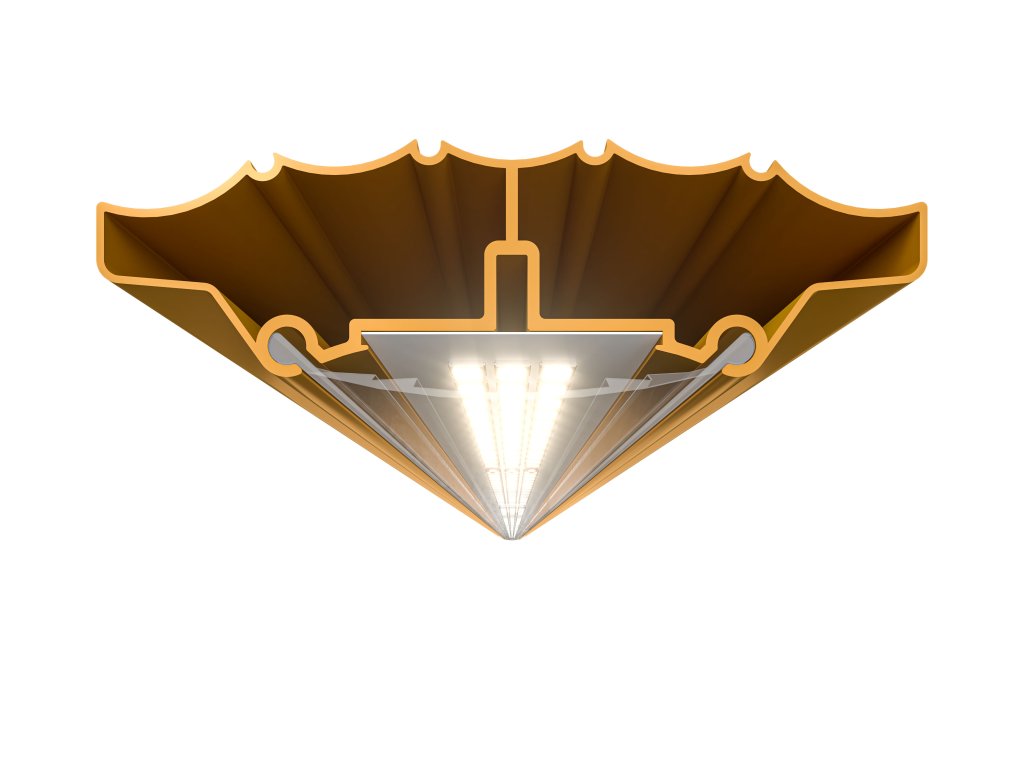

The virtually unbreakable lens offers a durable, easy-to-clean alternative to fragile conformal coatings. Its unique light benders direct more light to plants, reducing loss and boosting PPFD for better crop growth.
higher efficacy
3.0 umol/J
Category-Leading Efficiency: Featuring a high-efficiency high-voltage driver and upgraded LEDs, the 730W fixture achieves an impressive 3.0 µmol/J, providing the best performance-to-cost ratio on the market
Top-Level Performance
at the Best Price!
Building on the success of the Xplore Series, the all-new Dimlux Xplore Series 730W 3.0 brings cutting-edge innovation, enhanced efficiency, and superior light distribution to growers worldwide. An investment in the Xplore 3.0 is a commitment to the best performance-to-cost ratio in the market, making it the smart choice for growers seeking maximum returns with reliable, high-quality lighting solutions.
Key Benefits of the Xplore Series
- Exceptional Performance: Industry-leading efficiency and light distribution deliver high yields with minimal energy usage.
- Uniform Light Distribution: Asymmetrically placed LEDs ensure even coverage, improving growth and flowering across the canopy.
- Future-Proof Design: Expandable with UV and far-red add-ons, backed by a 3-year warranty for peace of mind.
- Proven ROI: Affordable entry price ensures quick payback, putting high-performance LED lighting within reach.
designed and engineered
in the Netherlands
Dimlux has again invested in R&D and delivers with the Xplore series very high efficiency and light output scores with an unparalleled light distribution. In addition, the fixtures are future proof. Dimlux naturally offers a 3-year warranty* on the Xplore fixtures. And for the ambitious grower who wants to go the extra mile now or later for even better growth yield, expansions are possible to create the ideal set-up..

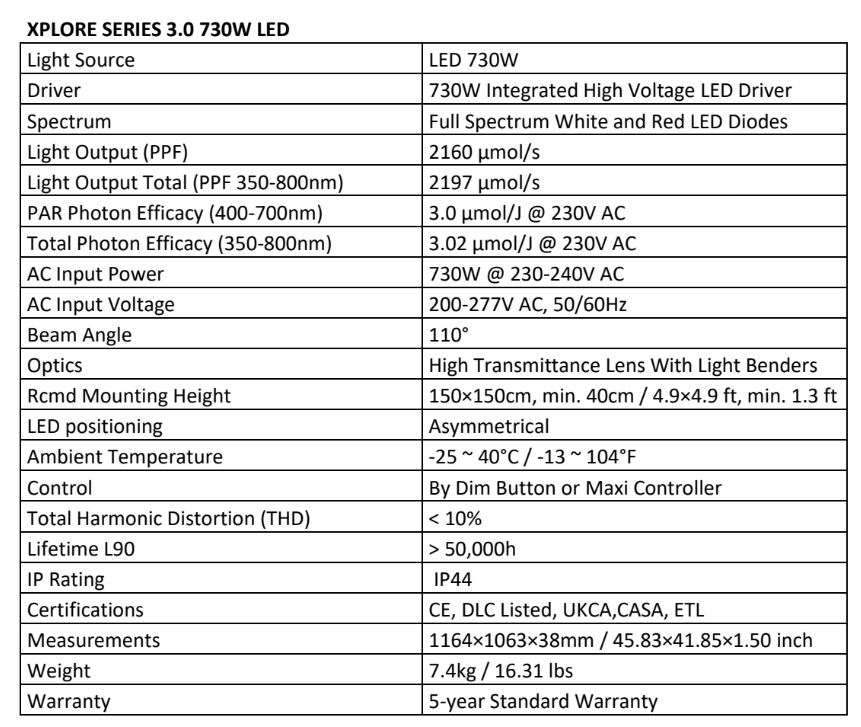

Specifications
|
XPLORE SERIES |
730W |
|
Light Source |
LED 730W |
|
Light Output (PPF) |
2160 μmol/s |
|
Light Output Total (PPF 350-800nm): |
2197 μmol/s |
|
PAR Photon Efficacy (400-700nm) |
3.0 μmol/J @ 230V AC |
|
Total Photon Efficacy (350-800nm) |
3.01 μmol/J @ 230V AC |
|
AC Input Power |
730W @ 230-240V AC |
|
AC Input Voltage |
200-700V AC, 50/60Hz |
|
Ballast |
730W Integrated High Voltage Led Driver |
|
Spectrum |
Full-spectrum for all growth stage |
|
Beam Angle |
110° |
|
Optics |
High Transmittance Lens With Light Benders |
|
LED position |
Asymmetrical |
|
Rcmd Mounting Height |
150×150cm min. 75cm / 5’×5’ min. 2.5’ |
|
Max. Ambient Temperature |
-25 ~ 40°C / -13 ~ 105°F |
|
Control |
By Dim Button or Maxi Controller |
|
Total Harmonic Distortion (THD) |
< 10% |
|
Lifetime L90 |
> 50,000h |
|
IP Rating |
IP44 |
|
Certifications |
CE, UKCA,CASA, ETL |
|
Warranty |
3 YEAR STANDARD * |
|
|
* Of which the first 2 years have full warranty. |
|
Measurements |
1122x1063x38mm |
|
|
44.2 x 42.0x 1.5 inch |
|
Weight |
7.40kg / 16.30 lbs |
HIGH EFFICACY &
HIGH LIGHTOUTPUT
Thanks to completely new improved top-class Dimlux LEDs in combination with our Digital ballast, efficiency is pushed to new heights of up to 2.7 µmol/J and light output up to 1944 µmol/s (730W) and 2.85 µmol/J and light output up to 2283 µmol/s (800W) .
80% MORE LIGHT
TO THE EDGES
The asymmetrically placed LED diodes provide 80% more light at the edges. This sets the Dimlux Xplore apart from its competitors.
The only led fixture with Asymmetric LEDs and BARS for A Higher yield
Thanks to the asymmetrically placed LED diodes, light distribution at the edges is improved significantly increasing equal growth, reducing over -saturation at higher light intensities giving you a higher yield!
GET READY FOR THE FUTURE
WITH THE NEW XPLORE SERIES LED
The Dimlux Xplore Series offers an unprecedented price / performance ratio featuring a perfect blend of both full-spectrum white LED diodes and red LED diodes.
This results in the perfect spectrum for all phases of growth. The mix of white and red LEDs result in a relatively high ratio of bluish light. Blue light keeps your crop tight and compact in the vegetative stage and adds to optimal morphogenesis and light uptake by the plant. The red part is ideal for flower and is accountable for the high yield.
Dimlux Integrated Digital Ballast with 4 dim options or External Control
The fully integrated Xplore Digital driver allows the LED fixture to be dimmed to OFF, 290W, 430W, 580W, or 730W. Alternatively, the EXT setting can be selected to enable control of the fixture using our Maxi Controller, ensuring maximum light output.
Lightweight and easy to install, if hung by means of Rope Ratchets the height of the fixture can be adjusted as your plants grow. This high-performing, high-efficiency LED 6 or 8 Bar Fixture can be used singly or as part of a lighting array.
Futureproof
& Upgradeable
Dimlux fixtures are durable and futureproof. We provide a 3-year warranty* on our Xplore fixtures. Furthermore, the Xplore serie is upgradeable: for the ambitious grower who wants to go the extra mile now or later for even better growth yield, expansions are possible to create the ideal set-up.
For optimal control and management of growing conditions, the Dimlux Maxicontroller can be added. And for expansion of the color spectrum UV and far-red applications can be added.
USE THE DIMLUX MAXICONTROLLER FOR ULTIMATE CONTROL
For ultimate control of the Xplore fixture and any add-ons, the Dimlux Maxicontroller is a perfect upgrade for those who want to grow professionally. The use of switch clocks is a thing of the past. With the Maxicontroller, switching times are set automatically, and you can also switch to continuous variable dimming.
Everything is adjustable and you can then leave the execution of the lighting schedules to the Maxicontroller. Want to go even further? Using sensors, it is possible to have your lighting automatically controlled by the Maxicontroller based on temperature and humidity values.

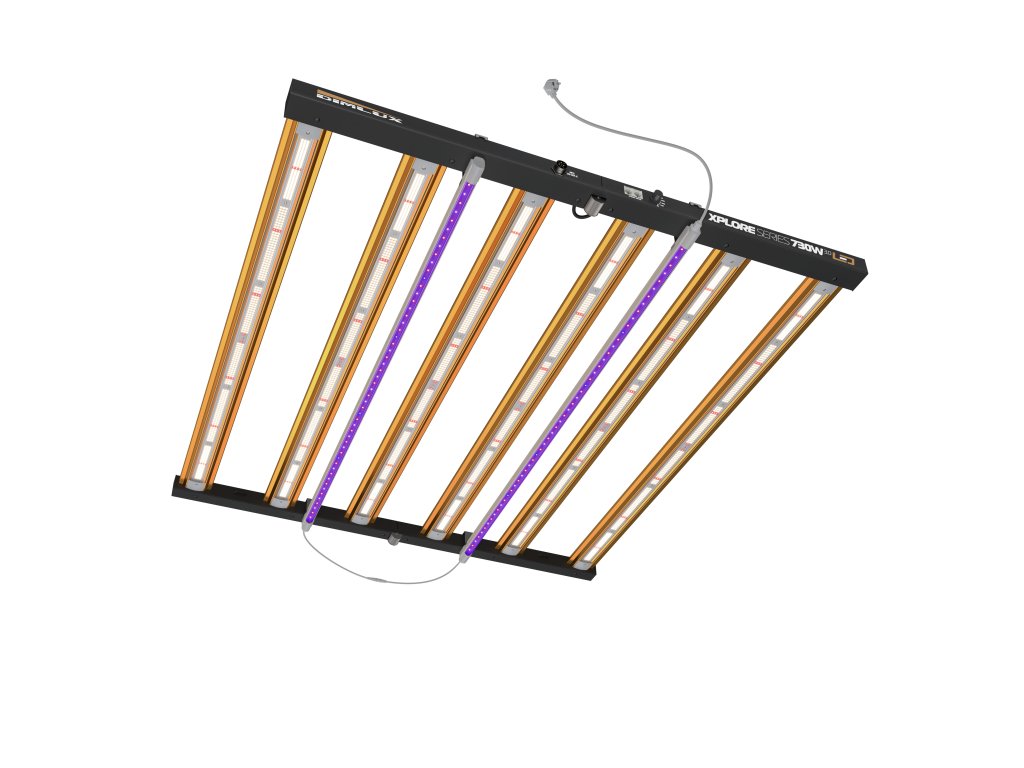

EXPAND YOUR LIGHT SPECTRUM
Expand your light spectrum with our matching UV-A and Far-red add-ons. They come in 3 different versions UV-A, NIR or UV-A+NIR which can be used within 1 setup. Each add-on has its own unique spectrum. Each supplemental light has its specific application, the UV-A and NIR can be used together with separate timers for maximum effect. When simplicity is required the combined UV-A + NIR fixture is the best choice.
