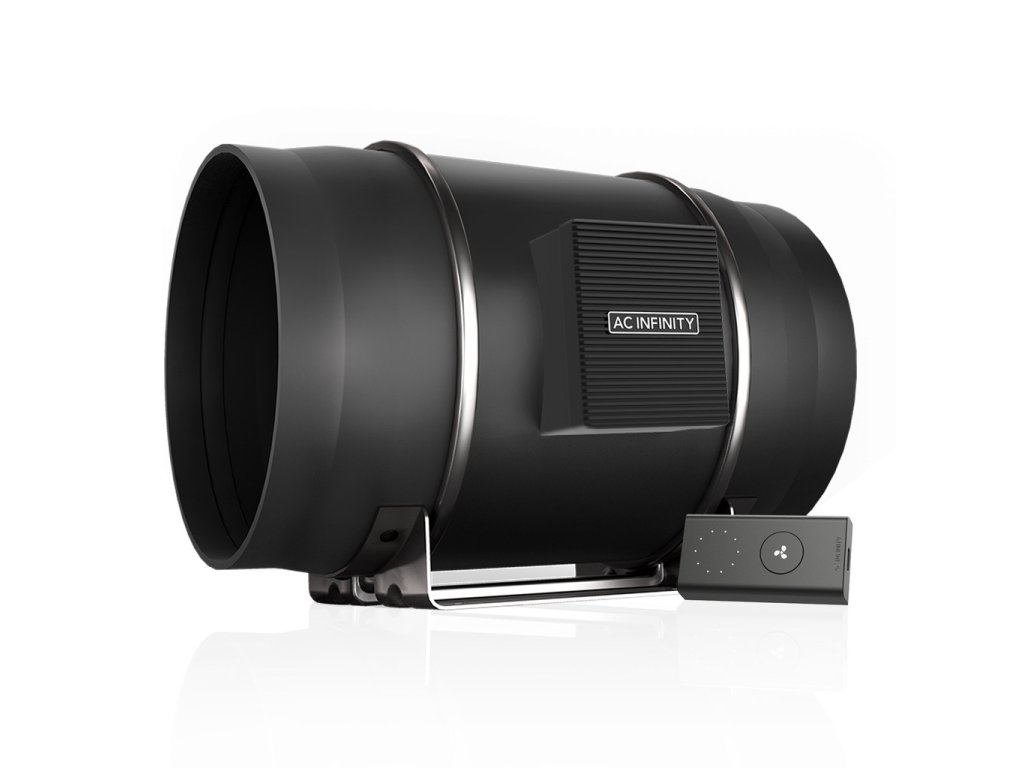

AC Infinity CLOUDLINE S12, Quiet Inline Duct Fan System with Speed Controller, 300mm

41064 ac infinity cloudline s12 quiet inline duct fan system with speed controller 300mm
€499 €412,40 excl. VAT
In stock
Shipping
Need a Better Price?
Delivery offer

This smart inline fan is designed for quiet and efficient ventilation in hydroponic grow rooms, improving heating and cooling in rooms, circulating fresh air, extracting gases, and cooling AV cabinets. Featuring a mixed flow design, the fan maintains high airflow even in high static pressure applications. It is equipped with a PWM-controlled EC motor that ensures quiet and energy-efficient performance. The motor housing, including the blades and fan, can be separated from the mounting frame for easy cleaning and maintenance.

Included is a smart controller with dynamic programming for climate control and scheduling, which can be connected to multiple UIS devices. This product is part of the UIS™ platform for growing equipment and smart controllers, designed for seamless integration to achieve the ideal environment for your plants.

Detailed information

Brand: AC Infinity
Code: AI-CLS12

Fill in the form and we will do our best to give you a better price.

Product detailed description

Designed for quiet ventilation of grow tents, heat transfer, and cooling of rooms, fresh air circulation, and cooling of AV cabinets. Equipped with a wired controller with 10 speed settings; compatible with all UIS controllers featuring smart programming. The PWM-controlled EC motor ensures silent and energy-efficient operation with minimal heat and noise. The mixed airflow design with a stator blade and hydrodynamic wind rings enables air delivery even in areas with high resistance.

Specifications:

  • Duct Size: 300mm

  • Dimensions: 31.0 x 45.0 x 35.5 cm

  • Airflow: 2723 m³/h

  • Noise Level: 62 dBA

  • Bearings: Double ball bearing

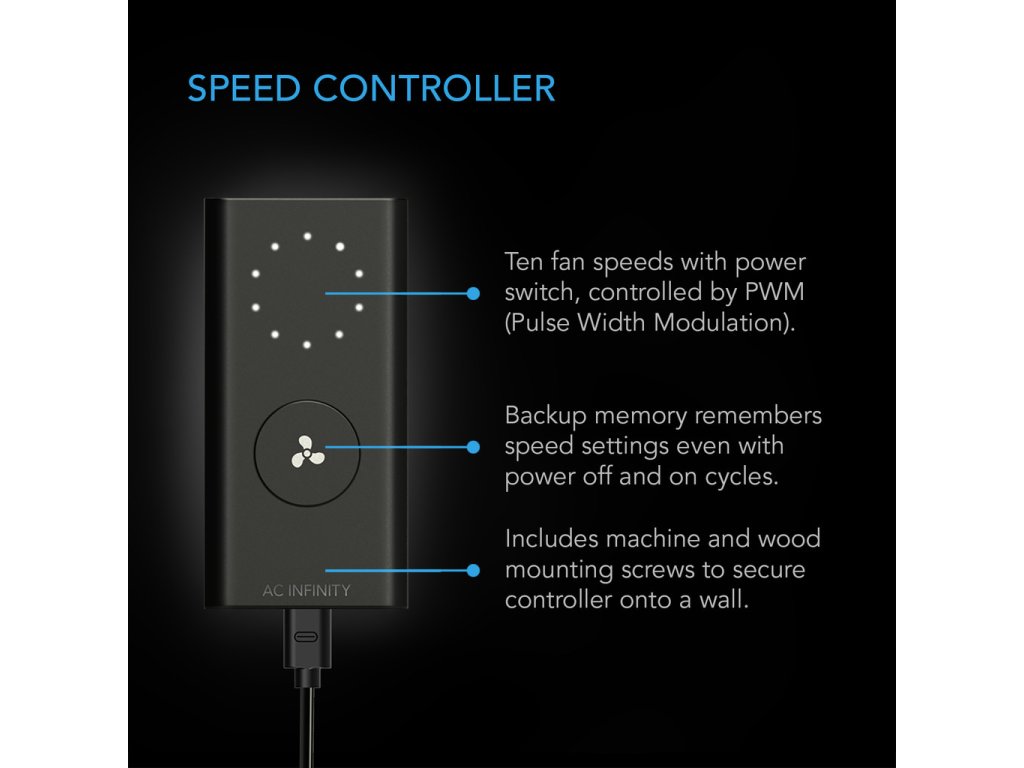

Precise Speed Control: The speed controller allows you to set the fan speed at ten levels, enabling optimal adjustment of noise and airflow for different environments. Precise airflow control is supported by the fan’s EC motor, controlled by PWM (Pulse Width Modulation). This system allows the fan to run smoothly even at low speeds without generating motor noise. The controller also features a backup memory that retains the last set speed even after power loss.

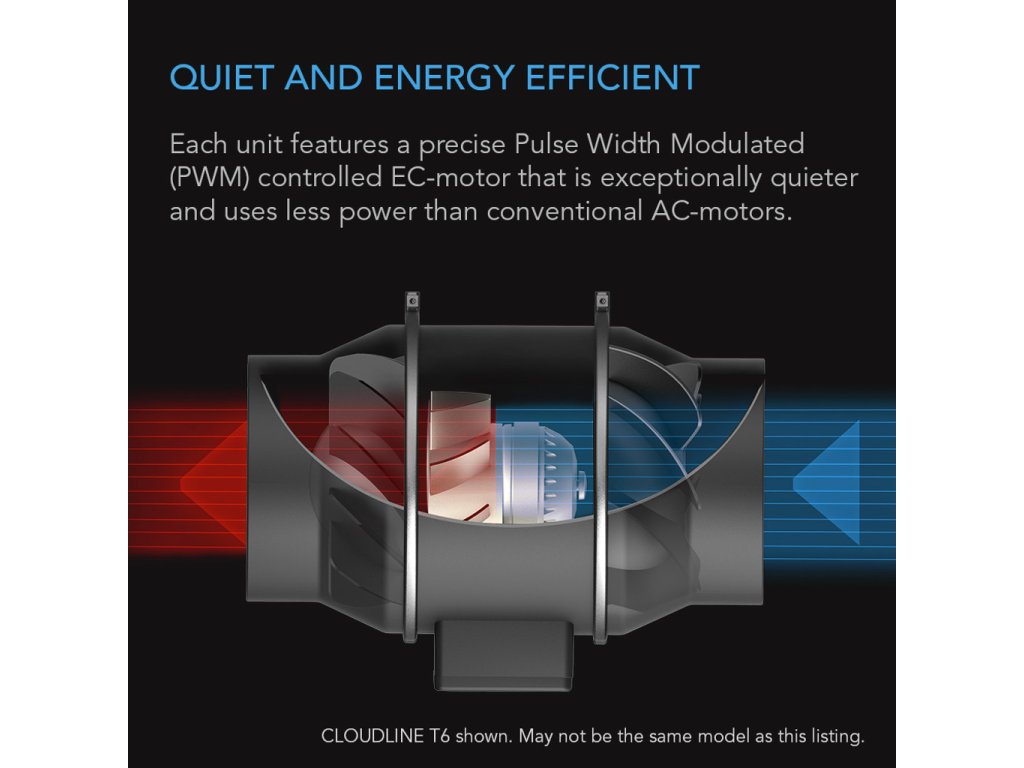

Quiet and Energy-Efficient Design: This fan uses a mixed airflow design with a stator blade and dual hydrodynamic wind rings, which allows for air delivery even in high-resistance applications. The motor is equipped with double ball bearings with a lifespan of 67,000 hours, allowing for installation in any position. The device has an IP44 rating, ensuring high resistance to dust and liquids, providing reliable operation in demanding environments.

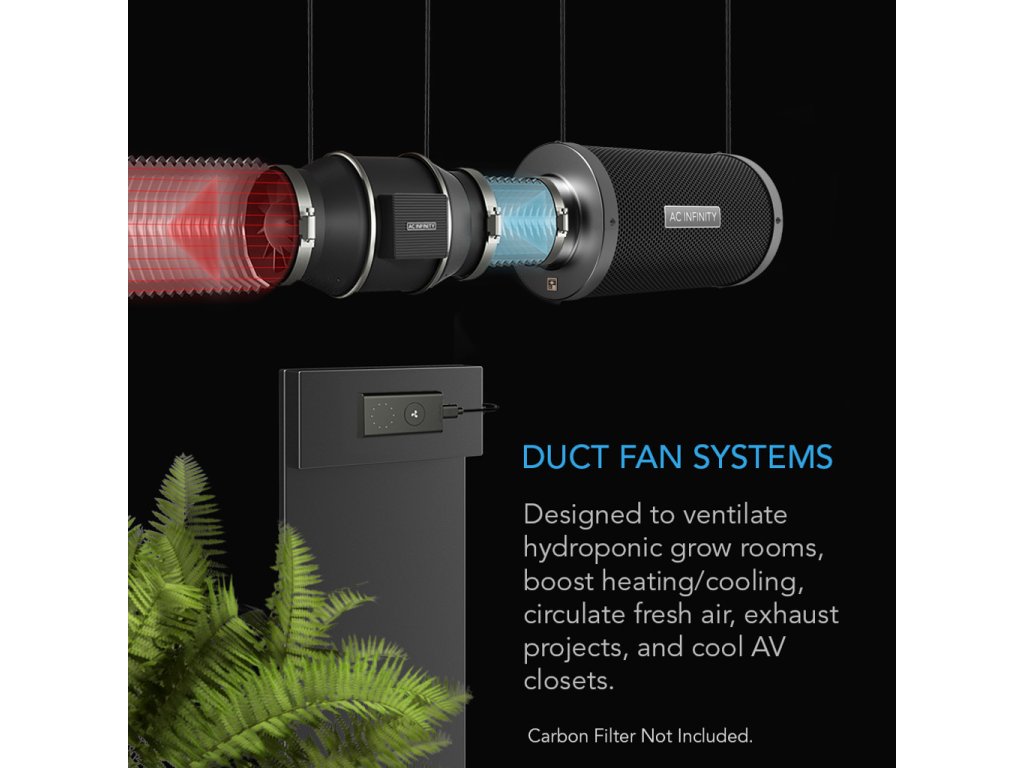

Applications: This quiet fan is ideal for a wide range of applications, including cooling AV equipment rooms, cabinets, shelves, and cabinets. Thanks to its low noise and advanced control features, it is also perfect for air circulation and ventilation in hydroponic grow rooms and tents, air exhaust from bathrooms, attics, and other installations.

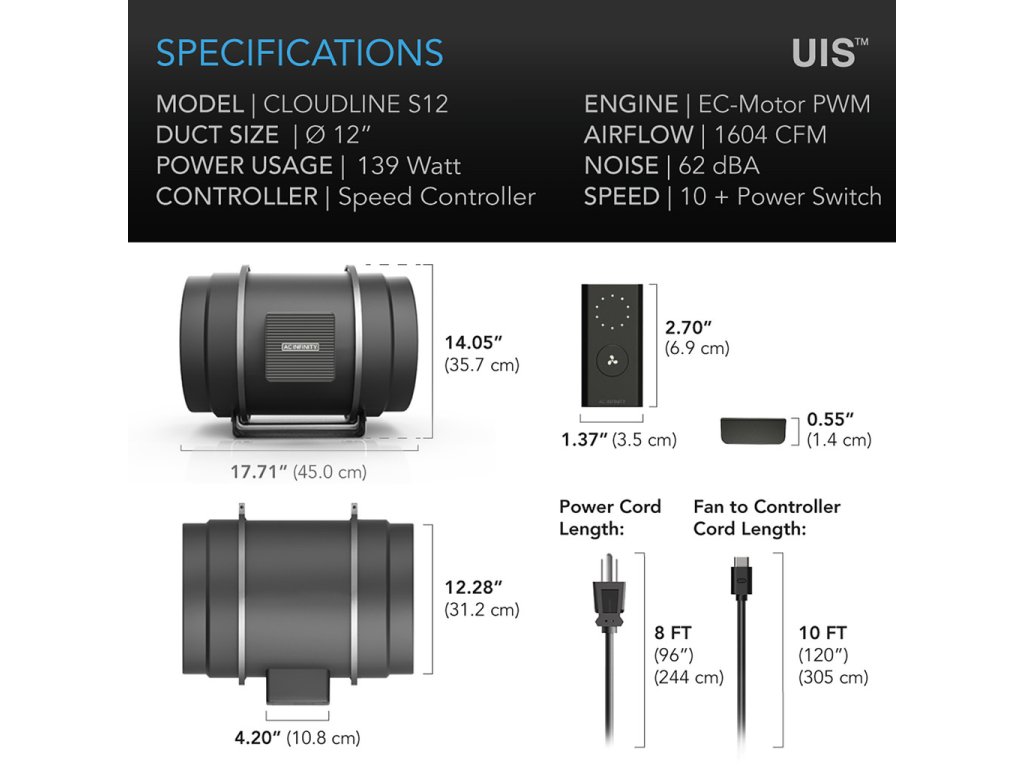

Product Dimensions and Installation - Fan:

  • Duct Size: 300mm

  • Overall Dimensions: 31.2 x 45.0 x 35.7 cm

  • Mounting Hole Distance: 17.8 x 18.1 cm

  • Mounting Hole Size: Ø 1.18 cm

  • Cable Length to Controller: 3m

  • Cable Length to Power Outlet: 2.4m

Product Dimensions and Installation - Controller:

  • Overall Dimensions: 8.5 x 3.6 x 1.3 cm

Product Performance and Technical Specifications:

  • Total Airflow: 2723 m³/h

  • Total Noise: 62 dBA

  • Static Pressure: 818 Pa

  • Voltage: 100-240V AC

  • Frequency: 50/60Hz

  • Maximum Power Consumption: 250 W

  • Average Power Consumption: 139 W

  • Current: 2.5 A

  • Power Connector Type: US Plug (NEMA 1-15 Type-A)

  • Operating Humidity: 35 to 85% RH

  • Operating Temperature: 32 to 140°F

  • Protection Rating: IP 44

  • Fan Bearings: Double Ball Bearing

  • Mounting Options: Horizontal or Vertical

  • L10 Lifespan: 67,000 hours
