AC Infinity Advance Grow Tent System PRO 120x120x200cm, 6-Plant Kit, WiFi-Integrated Controls

Product detailed description

Key Features:

• Smart Control: The controller automates every fan and light with individual programs to adjust speed and brightness. Connect to the app via Wi-Fi to monitor the climate in your grow tent from anywhere.

• Advanced Components: The kit includes a 150mm EC inline fan, a 150mm oscillating clip fan, and a 500W full-spectrum LED light with Samsung LM301H EVO diodes. These diodes provide optimal light intensity for plant growth.

• Optimized Climate: Air is efficiently circulated thanks to the next-gen clip fan with customizable oscillation. The innovative carbon filter with an eco-friendly design eliminates odors and ensures proper ventilation.

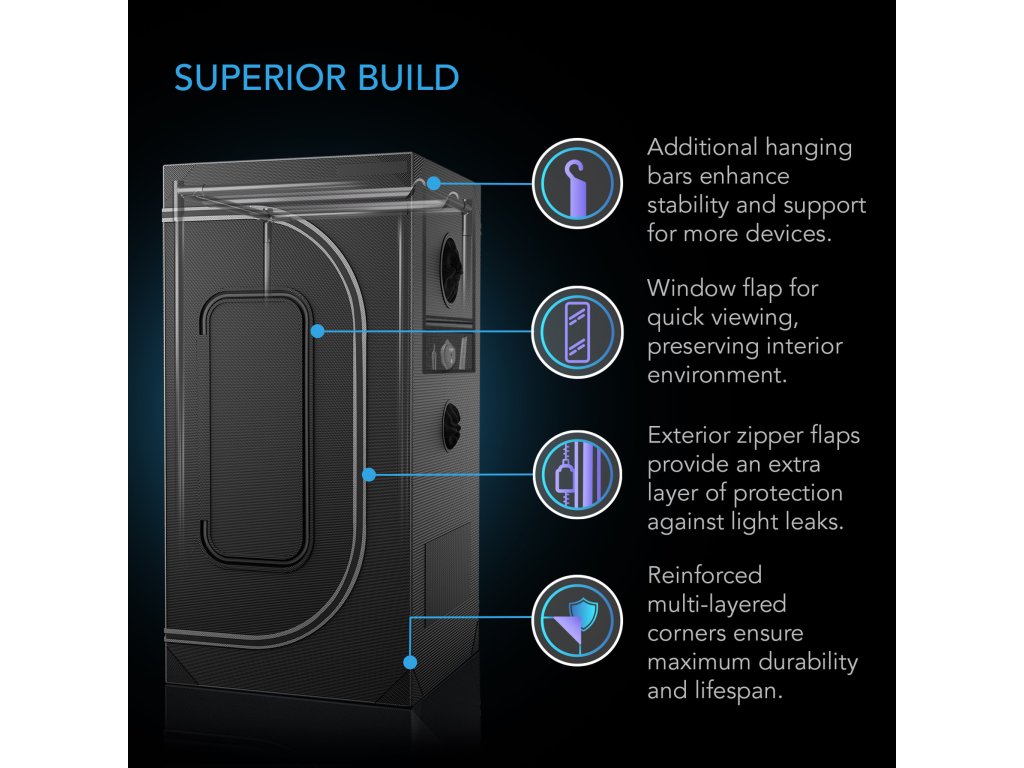

• High-Quality Tents: The Mylar 2000D tent with a steel frame and dense Oxford fabric creates an ideal climate-controlled environment for growing.

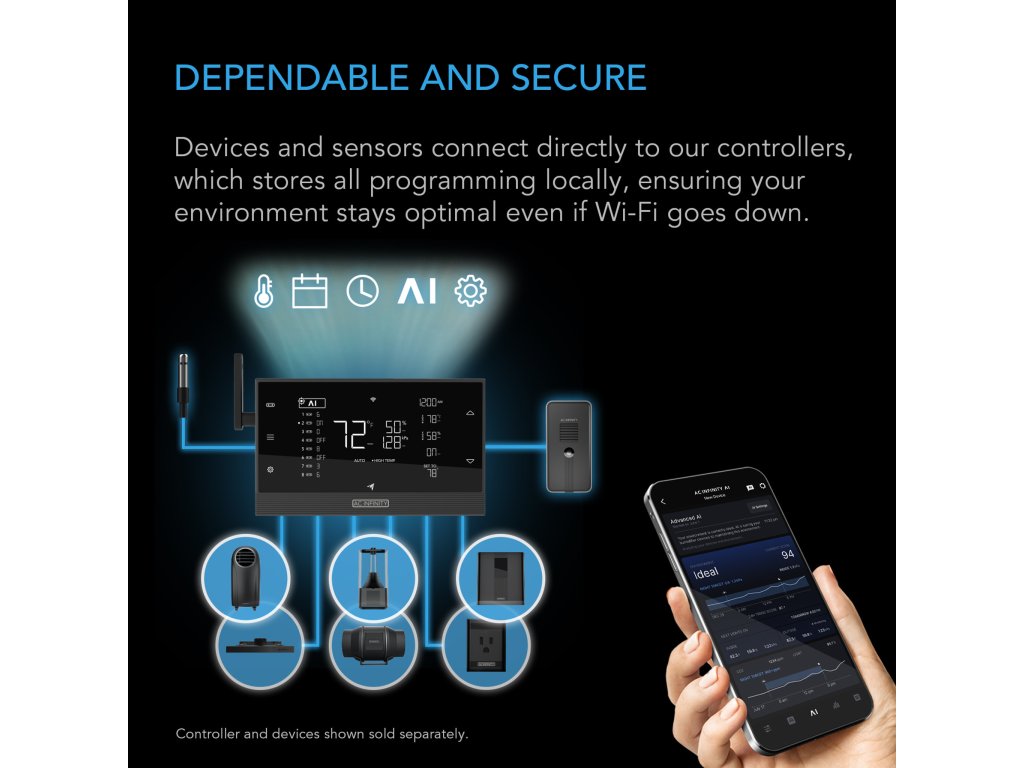

• Smart Programming and Control: Integration of components is ensured through the CONTROLLER 69 PRO, which allows you to set dynamic programs for activating devices based on parameters like VPD, temperature, and humidity. This central controller can be connected to the AC Infinity app via Bluetooth for remote access and advanced programs. Monitor historical data and export it for analysis using CSV files.

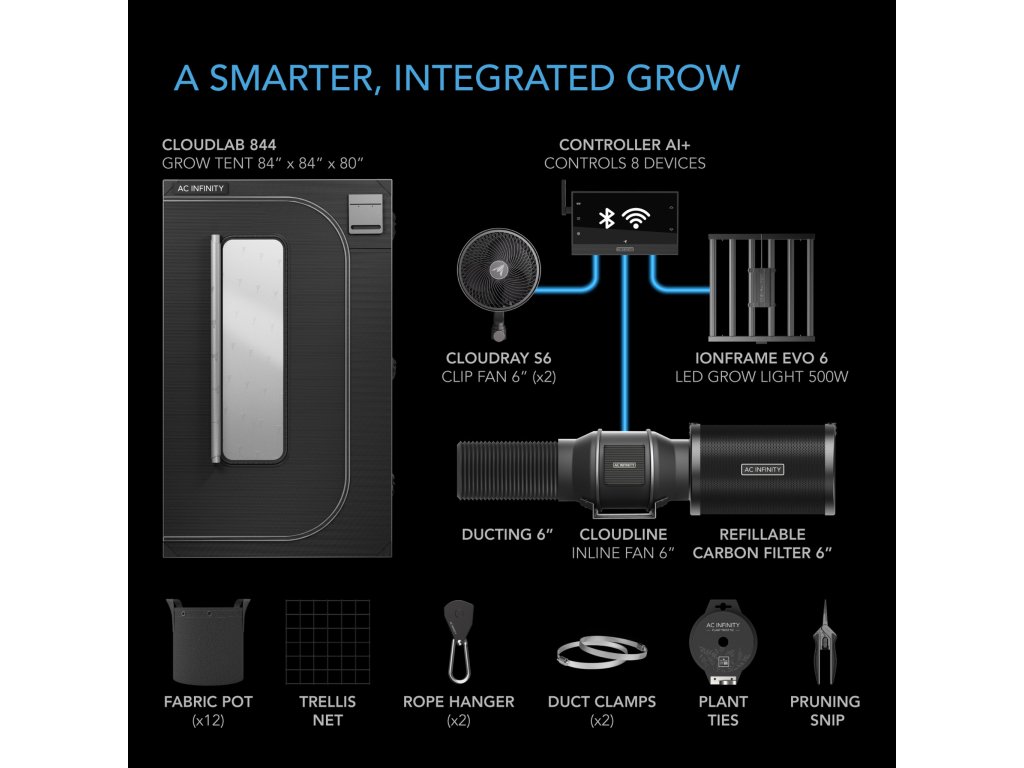

The Complete Kit Includes:

• CLOUDLAB 844 – Advanced Grow Tent (120x120x200 cm)

• CONTROLLER 69 PRO – Grow Tent Controller

• CLOUDLINE PRO 6 – Inline Fan 150mm

• IONFRAME EVO6 – Commercial Strip LED Grow Light 500W

• CLOUDRAY S6, Gen 2 – Oscillating Clip Fan (x2)

• 150mm Refillable Carbon Filter

• 150mm Flexible Ducting (200mm long)

• 150mm Steel Clamps (x2)

• Adhesive Tape, Hook & Loop Clips (x10)

• 5-Gallon Fabric Pots (x8)

• Elastic Trellis Netting (4x4’)

• Micro-Sharp Pruning Scissors

Product Dimensions and Setup - Grow Tent:

• Tent Dimensions: 120.0 x 120.0 x 200.0 cm

• Ducting Hole Sizes: 150mm, 200mm

• Observation Window Size: 30.0 x 30.0 cm

• Rear Air Intake Hole Size: 15.0 x 35.0 cm

• Side Air Intake Hole Size: 15.0 x 35.0 cm

• Mounting Strap Length: 16.5 cm

Materials and Technical Specifications - Tent:

• Outer Material: Oxford

• Inner Material: Mylar

• Pole Material: Steel

• Pole Thickness: 22 mm

• Support Capacity: 68 kg

Product Dimensions and Setup - Inline Fan:

• Ducting Size: 152 mm

• Overall Dimensions: 21.2 x 32.0 x 20.0 cm

• Mounting Hole Distance: 8.0 x 6.0 cm

• Mounting Hole Size: Ø 0.6 cm

• Cable Length to Controller: 3 m

• Cable Length to Outlet: 2.4 m

Inline Fan Performance and Technical Specifications:

• Total Airflow: 683 m³/h

• Noise Level: 32 dBA

• Static Pressure: 503 Pa

• Voltage: 100-240V AC

• Frequency: 50/60 Hz

• Max Power Consumption: 70 W

• Average Power Consumption: 38 W

• Current: 0.94 A

• Power Connector Type: US Plug (NEMA 1-15 Type-A)

• Operating Humidity: 35-85% RH

• Operating Temperature: 0-60°C (32-140°F)

• Ingress Protection: IP 44

• Fan Bearings: Double Ball Bearings

• Mounting Position: Horizontal or Vertical

• Lifespan: 67,000 hours

Product Dimensions and Setup - Clip Fan:

• Blade Size: 16.5 cm

• Overall Dimensions: 22.2 x 26.6 cm

• Cable Length to Outlet: 2.4 m

Clip Fan Performance and Technical Specifications:

• Max Airflow: 552 m³/h

• Noise Level: 31 dBA

• Static Pressure: 25 Pa

• Operating Voltage: 100-240V AC

• Power Consumption: 11 W

• Current: 0.15 A

• Operating Humidity: 35-85% RH

• Operating Temperature: 0-60°C (32-140°F)

• Water Protection: IP-44

• Rotation Range: 90°

• Tilt Angle: 55°

• Oscillation: Automatic Oscillation

• Fan Bearings: Double Ball Bearings

• Mounting Position: Horizontal or Vertical

• Lifespan: 67,000 hours

Product Dimensions and Setup - Controller:

• Overall Dimensions: 13.2 x 7.4 x 2.7 cm

• Mounting Hole Distance: 12.0 x 6.7 cm

• Mounting Hole Size: Ø 0.3 cm

• Display Size: 9 x 3.5 cm

• Sensor Length: 3.6 m

Controller Performance and Technical Specifications:

• Max Number of Controlled Devices: 4

• Max Power Support: 10 W

• Operating Temperatures: 0-60°C (32-140°F)

• Operating Voltage: 9-18V

• Power Consumption: 1 W

• Current: 0.1 A

• Input Power: 10V from Device

• Operating Humidity: 35-85% RH

• FCC Certification: (Whole Product)

Product Dimensions and Setup - LED Grow Light:

• Light Dimensions: 82.0 x 83.0 x 8.6 cm

LED Grow Light Performance and Technical Specifications:

• Coverage: 4 x 4 ft.

• Diodes: Samsung LM301H EVO

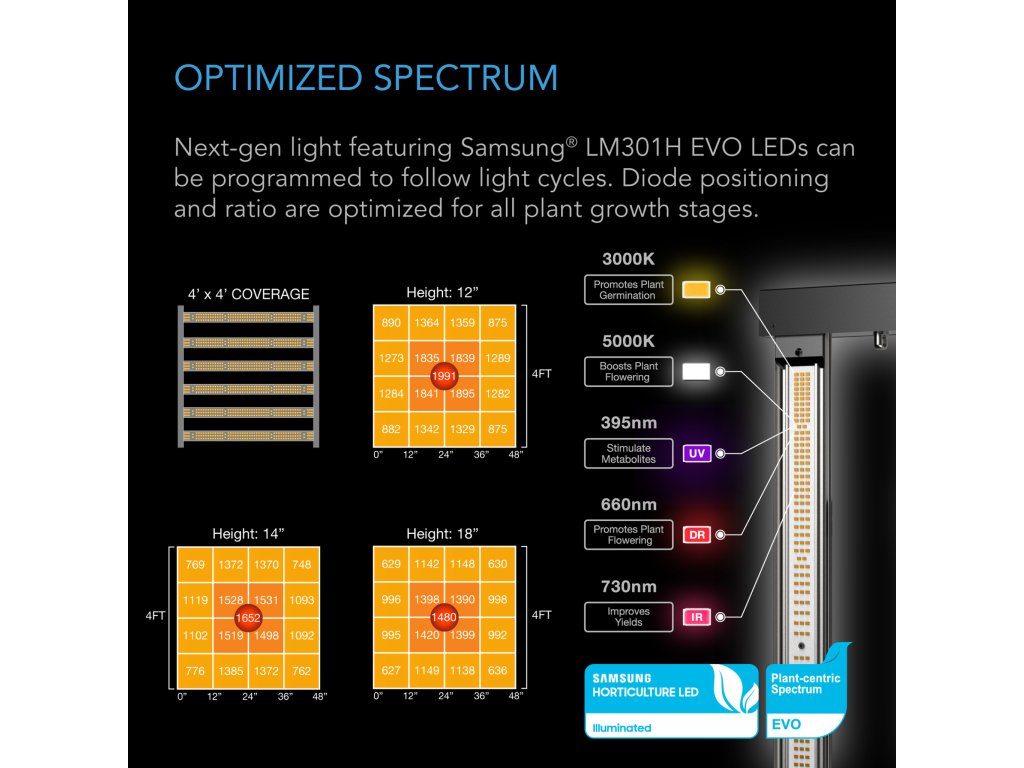

• Spectrum: 395 nm, 660 nm, 730 nm, 3000K, 5000K

• Number of Chips (Total): 1680

• Number of Chips (EVO 3000K): 1074

• Number of Chips (EVO 5000K): 540

• Number of Chips (Seoul 395 nm): 6

• Number of Chips (OSRAM 660 nm): 54

• Number of Chips (OSRAM 730 nm): 6

• LED Driver: SOSEN-500W

• Efficiency (per diode): 3.14 µmol/J

• PPFD: 1991 PPFD

• Power Consumption: 500 W

• Voltage: 100-277V AC

• Frequency: 50/60 Hz

• Current: 5.0 A

• Power Connector Type: US Plug (NEMA 1-15 Type-A)

• Operating Humidity: 35-85% RH

• Operating Temperature: 0-60°C (32-140°F)

• Water Protection: IP-65

• Lifespan: 50,000 hours

Product Dimensions - Carbon Filter:

• Ducting Hole Size: 150mm

• Overall Dimensions: 40.5 x 22.7 cm

• Flange Length: 4.0 cm

Carbon Filter Performance and Technical Specifications:

• Flange Material: Aluminum

• Flange Design: Dual-Sided

• Mesh Material: Galvanized Steel with Gunmetal Finish

• Carbon Type: Australian Virgin RC412

• Carbon Class: 1200+ IAV

• Carbon Thickness: 38 mm

• Max Airflow: 696 m³/h

Product Dimensions - Ducting:

• Duct Size: 150mm

• Length: 2.4 m

Ducting Performance and Technical Specifications:

• Outer Layer: PVC Thermoplastic

• Inner Material: Aluminum Foil

• Inner Structure: Spiral Steel Wire Reinforcement
