AC Infinity Advance Grow Tent System 60x120x180cm, 2-Plant Kit, WiFi-Integrated Controls

Product detailed description

Key Features:

• Automation Control: The controller automatically adjusts the speed and brightness of each fan and light based on individual programs.

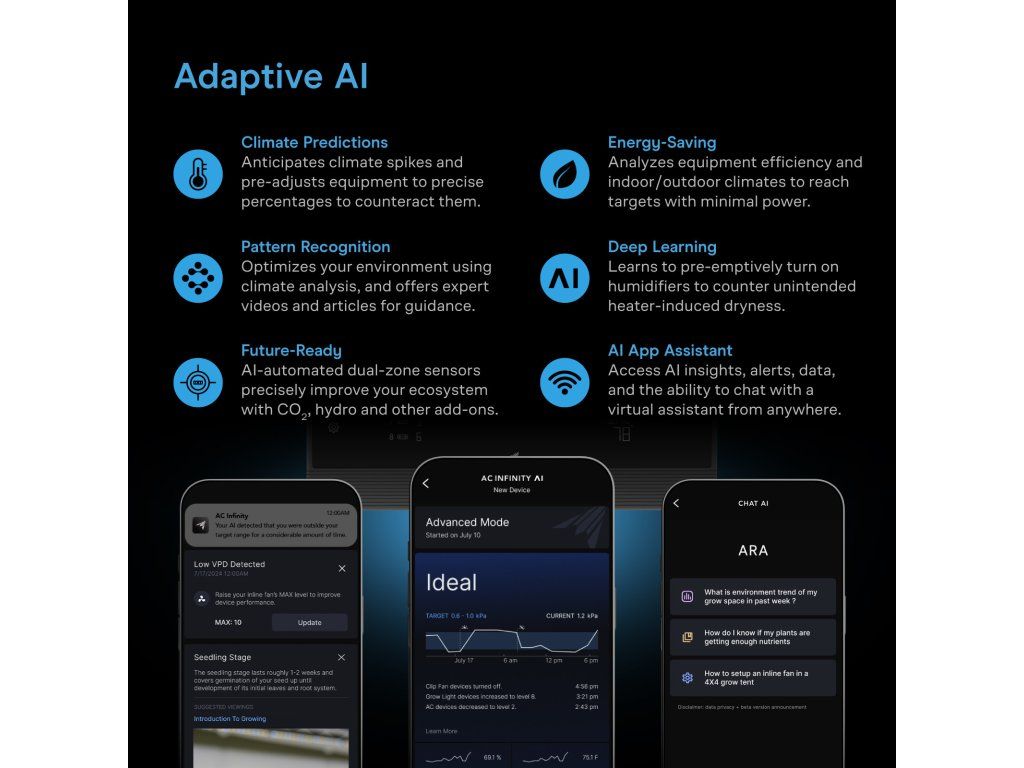

• Mobile App: Connect your mobile phone to our app via Wi-Fi and control the climate of the tent remotely.

• Next-Generation Fans and Lights: EC-motor inline fan 150mm, clip fan 150mm, and 200W full-spectrum LED light with Samsung LM301H diodes for optimal plant growth.

• High-Quality Grow Tent: Premium 2000D Mylar tent measuring 60x120x180cm, Australian carbon filter, flexible ducting, fabric pots, trimming scissors, and more.

Product Description: This advanced growing system allows you to easily set and maintain ideal conditions for your plants. The inline fan, carbon filter, and ducting ensure optimal regulation of temperature, humidity, and odor removal. Air is circulated using the new clip fan, which provides even and customized airflow for your plants. The LM301H diode LED grow light emits strong lighting that simulates natural sunlight and supports plant growth.

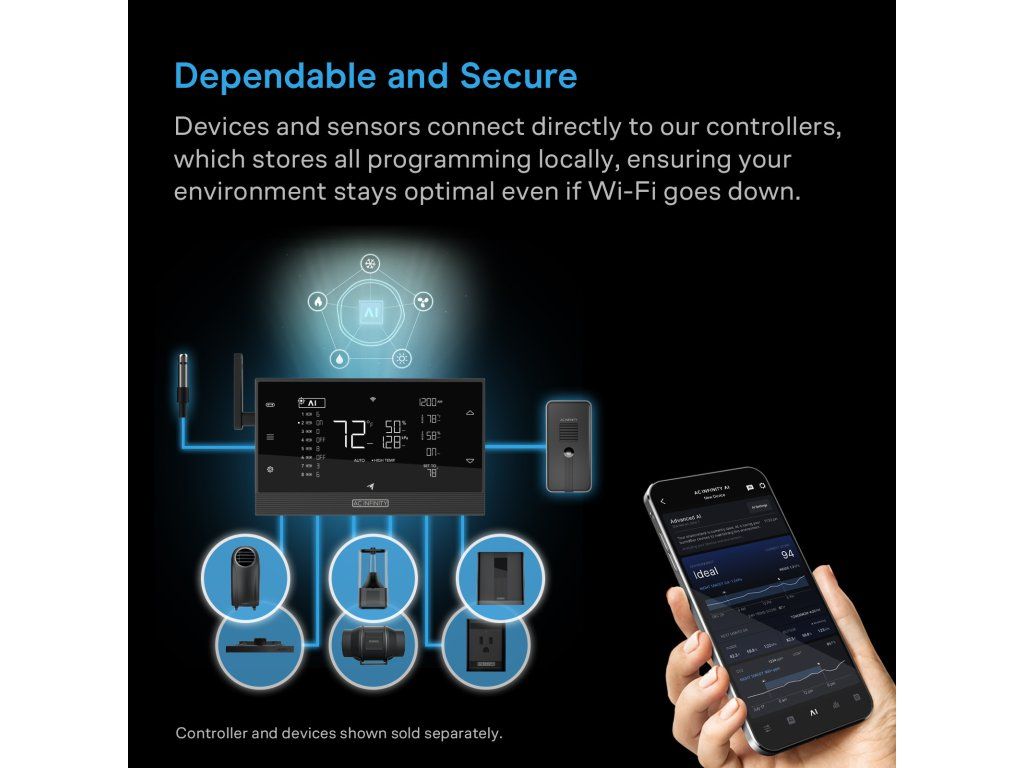

Smart Programming: With the CONTROLLER 69 PRO, you can set dynamic programs to activate fans and lights based on temperature, humidity, and other factors. This central controller allows you to connect to the AC Infinity app, which provides remote access to your growing system. You can monitor performance, receive alerts, and adjust programs according to current growing needs.

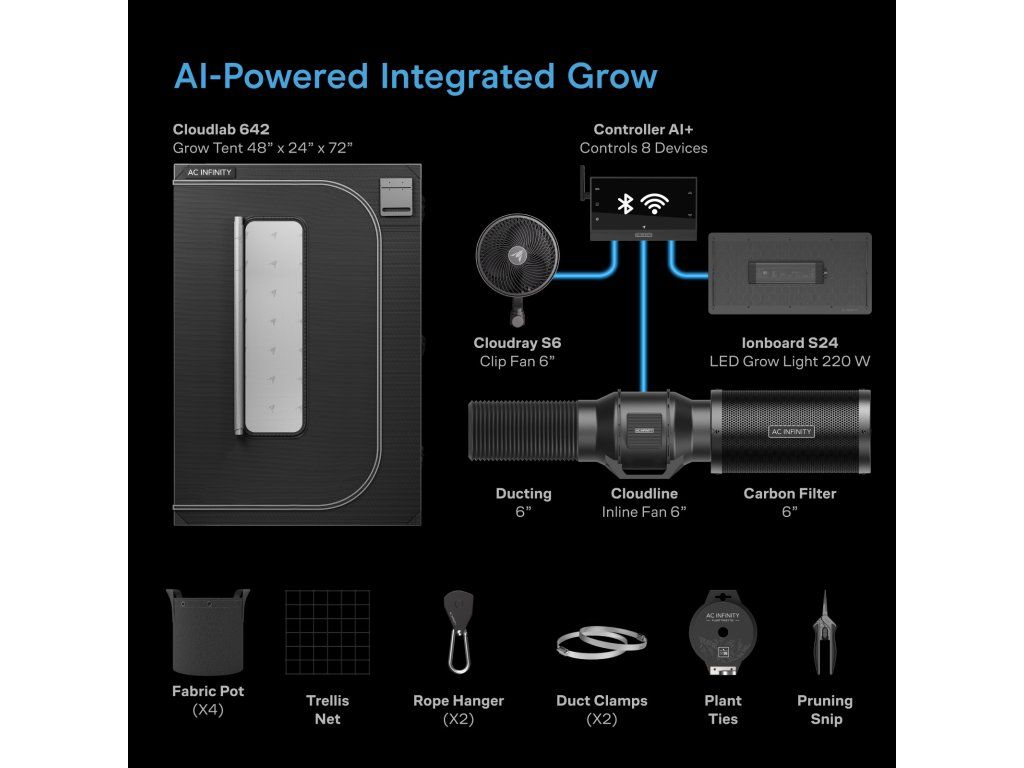

Complete Set Includes:

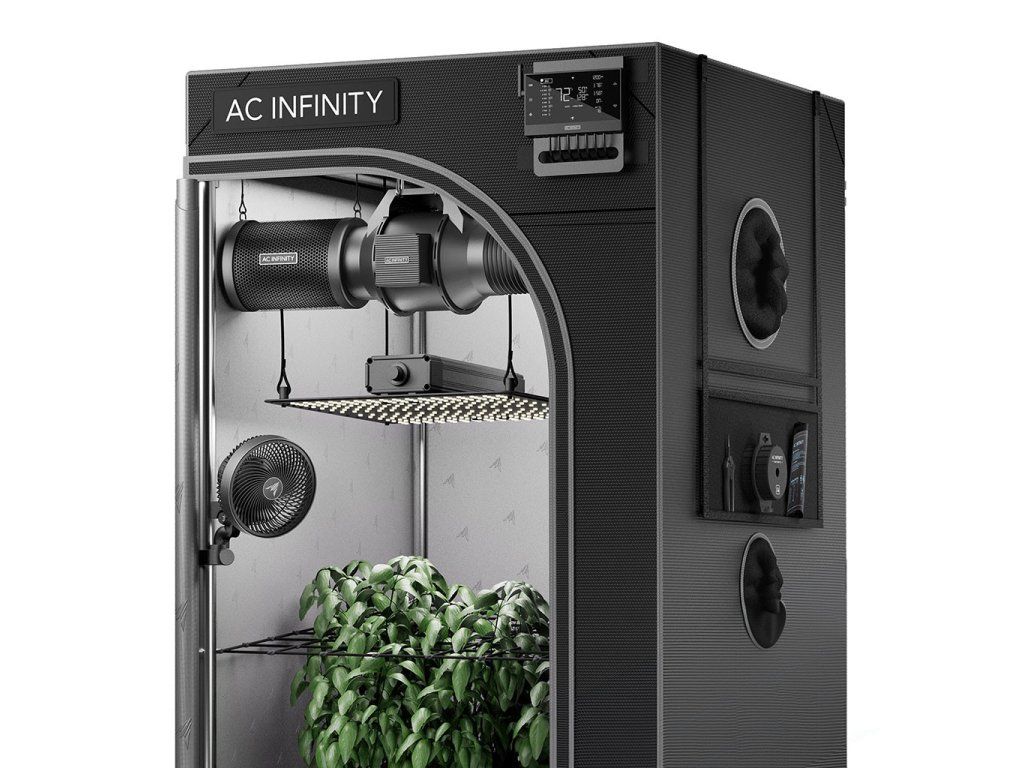

• CLOUDLAB 642 – Advanced Grow Tent 60x120x180cm (1 pc)

• CONTROLLER 69 PRO – Controller for Grow Tent (1 pc)

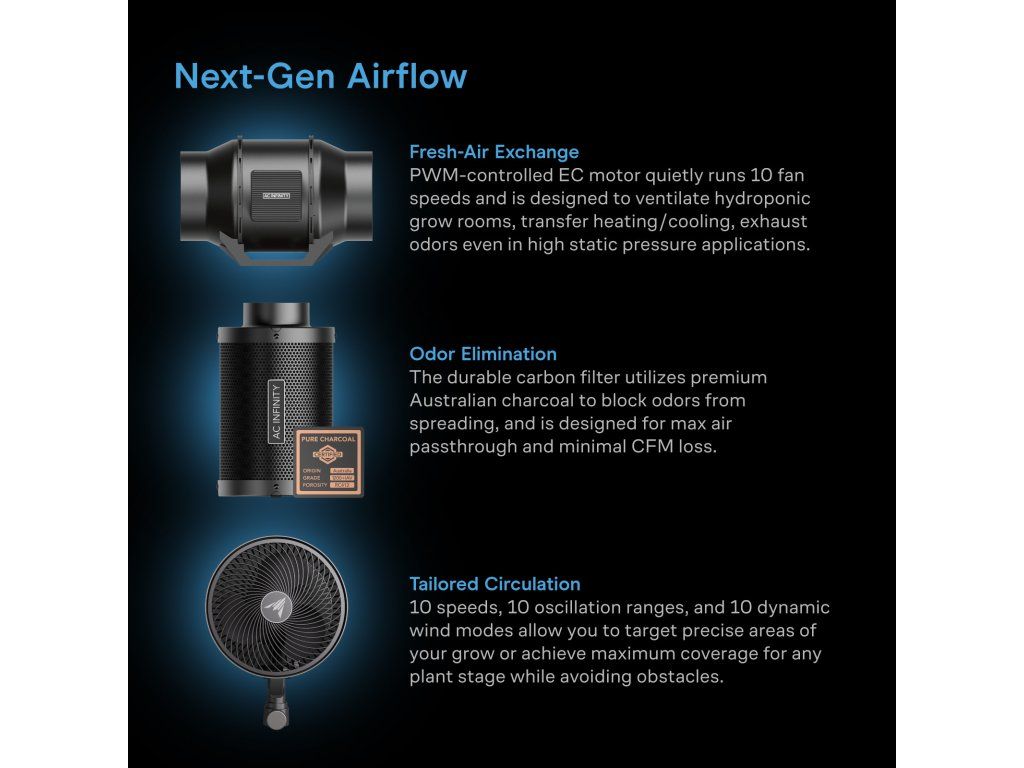

• CLOUDLINE LITE 6 – Inline Fan 150mm (1 pc)

• IONBOARD S24 – 200W LED Grow Light (1 pc)

• CLOUDRAY S6, Gen 2 – Oscillating Clip Fan (1 pc)

• Carbon Filter 150mm (1 pc)

• 150mm Flexible Ducting, 200mm Long (1 pc)

• 150mm Steel Clamps (2 pcs)

• 5' Duct Tape (1 pc)

• Hooks and Loops for Mounting (10 pcs)

• 5-Gallon Fabric Pots (4 pcs)

• Elastic Trellis Netting 2x4’ (1 pc)

• Black Wire Ties (1 pc)

• Micro-Tip Trimming Scissors (1 pc)

Dimensions and Assembly - Grow Tent:

• Tent Dimensions: 120.8 x 60 x 180 cm

• Ducting Holes Size: 100mm, 150mm, 200mm

• Observation Window Size: 30.0 x 30.0 cm

• Rear Intake Hole Size: 15.0 x 35.0 cm

• Side Intake Hole Size: 15.0 x 28.0 cm

• Mounting Strap Length: 16.5 cm

Specifications - Grow Tent:

• Outer Tent Material: Oxford

• Inner Tent Material: Mylar

• Pole Material: Steel

• Pole Thickness: 22 mm

• Load Capacity of Frame: 68.18 kg

• Plant Capacity: 2

Dimensions and Assembly - Inline Fan:

• Duct Size: 150mm

• Overall Dimensions: 21.2 x 32.0 x 20.0 cm

• Distance Between Mounting Holes: 8.0 x 6.0 cm

• Mounting Hole Size: Ø 0.6 cm

• Cable Length to Controller: 3m

• Cable Length to Outlet: 2.4m

Specifications - Inline Fan:

• Airflow: 598 m³/h

• Noise Level: 34 dBA

• Static Pressure: 394 Pa

• Voltage: 100-240V AC

• Frequency: 50/60Hz

• Max Power Consumption: 65 W

• Average Power Consumption: 35 W

• Current: 0.95 A

• Power Connector Type: US Plug (NEMA 1-15 Type-A)

• Operating Humidity: 35-85% RH

• Operating Temperature: 32 to 140°F

• Ingress Protection: IP-44

• Bearing Type: Dual Ball

• Mounting Position: Horizontal or Vertical

• Expected Lifetime L10: 67,000 hours

• Fan Quality Certification: CE, RoHS

Dimensions and Assembly - Clip Fan:

• Blade Size: 160mm

• Overall Dimensions: 22.2 x 26.6 cm

• Cable Length to Outlet: 2.4m

Specifications - Clip Fan:

• Max Airflow: 552 m³/h

• Noise Level: 31 dBA

• Static Pressure: 25 Pa

• Operating Voltage: 100-240V AC

• Power Consumption: 11 W

• Current: 0.15 A

• Operating Humidity: 35-85% RH

• Operating Temperature: 32 to 140°F

• Water Protection Level: IP-44

• Rotation Angle: 90°

• Tilt Angle: 55°

• Oscillation: Automatic Oscillation

• Bearing Type: Dual Ball Bearing

• Mounting Position: Horizontal or Vertical

• Expected Lifetime: 67,000 hours

• Certification: ETL

Dimensions and Assembly - Controller:

• Overall Dimensions: 13.2 x 7.4 x 2.7 cm

• Distance Between Mounting Holes: 12.0 x 6.7 cm

• Mounting Hole Size: Ø 0.3 cm

• Display Size: 9 x 3.5 cm

• Sensor Probe Length: 3.6m

Specifications - Controller:

• Max Number of Controlled Devices: 4

• Max Supported Power: 10 W

• Programming Temperature Range: 32 to 140°F

• Operating Voltage: 9-18V

• Power Consumption: 1 W

• Current: 0.1 A

• Input Power: 10V from Device

• Operating Humidity: 35-85% RH

• FCC Certification

Dimensions and Assembly - LED Grow Light:

• Light Dimensions: 30.0 x 60.0 cm

• LED Panel Thickness: 1.1 cm

• Driver Dimensions: 21.9 x 4.0 cm

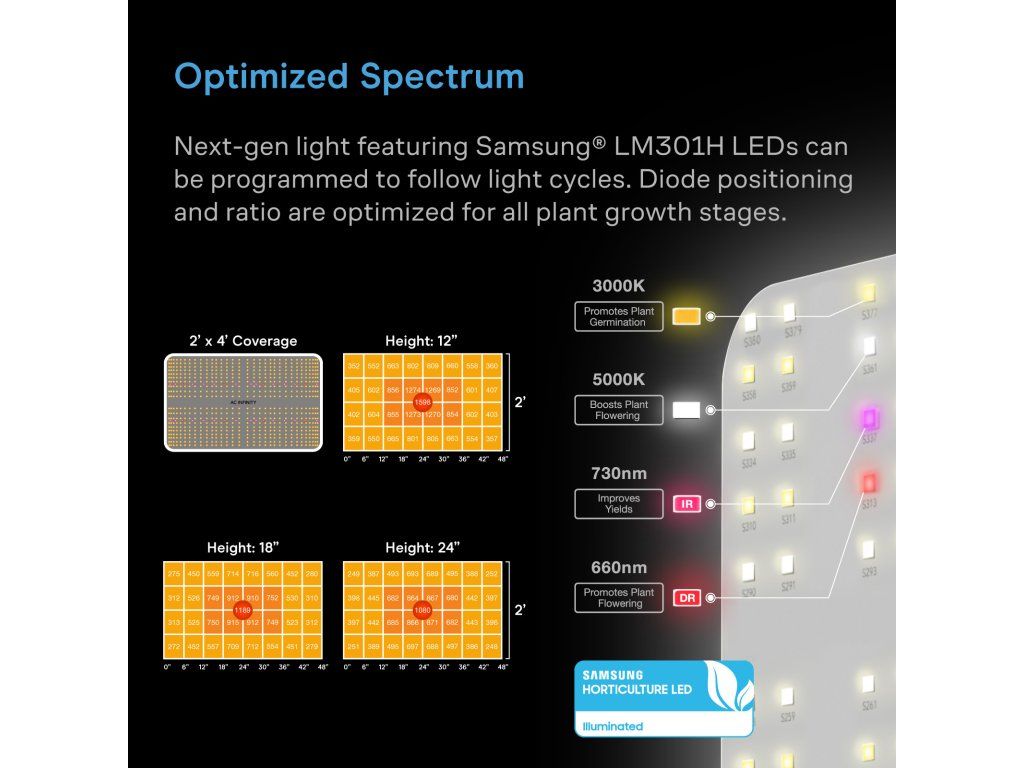

Specifications - LED Grow Light:

• Coverage: 2 x 4 ft

• Diode Type: Samsung LM301H

• Number of Diodes: 544

• LED Driver: AC Infinity Proprietary Driver IB-200

• Efficiency: 2.65 µmol/j

• PPFD: 1598 PPFD

• Spectrum: 660nm, 730nm, 3000K, 5000K

• Power Consumption: 200 W

• Voltage: 100-277V AC

• Frequency: 50/60 Hz

• Current: 1.84 A @ 120V | 0.92 A @ 240V | 0.80 A @ 277V

• Control: Digital Dimming with Timer

• Power Connector Type: US Plug (NEMA 1-15 Type-A)

• Operating Humidity: 35-85% RH

• Operating Temperature: 32 to 140°F

• Expected Lifetime: 50,000 hours

• Certification: ETL

Dimensions and Assembly - Carbon Filter:

• Duct Hole Size: 150mm

• Overall Dimensions: 40.5 x 22.7 cm

• Flange Length: 4.0 cm

Specifications - Carbon Filter:

• Flange Material: Aluminum

• Flange Design: Reversible

• Mesh Material: Galvanized Steel

• Carbon Type: Australian Virgin RC412

• Carbon Class: 1200+ IAV

• Carbon Thickness: 38 mm

• Max Airflow: 696 m³/h

Dimensions and Specifications - Ducting:

• Duct Size: 150 mm

• Length: 2.4m

Specifications - Ducting:

• Outer Layer: PVC Thermoplastic

• Inner Material: Aluminum Foil

• Inner Structure: Steel Spiral Wire
